- For use with KUKA KRC4 Controllers
- Article no. 115723
- 12V
- 5.0/5.2Ah

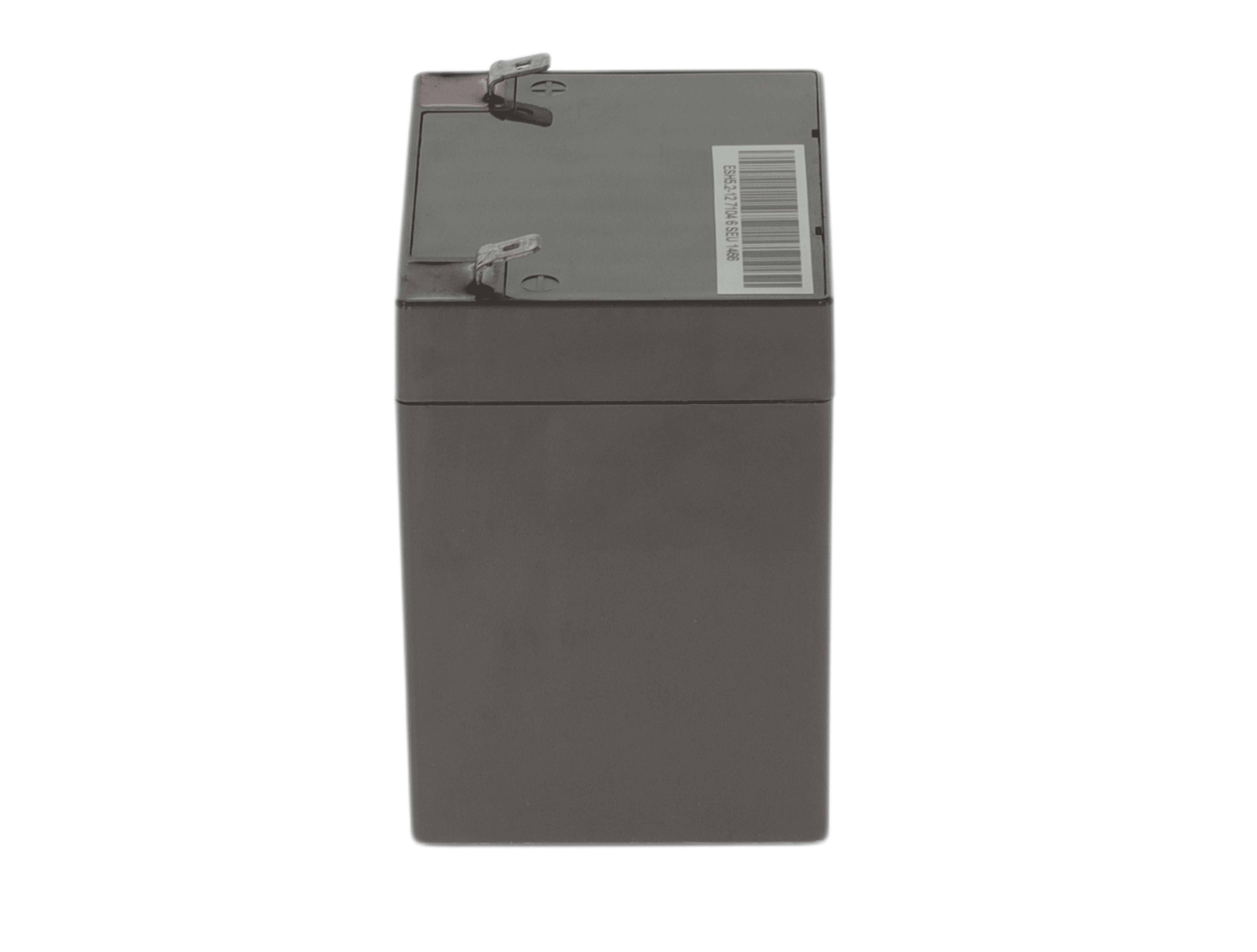

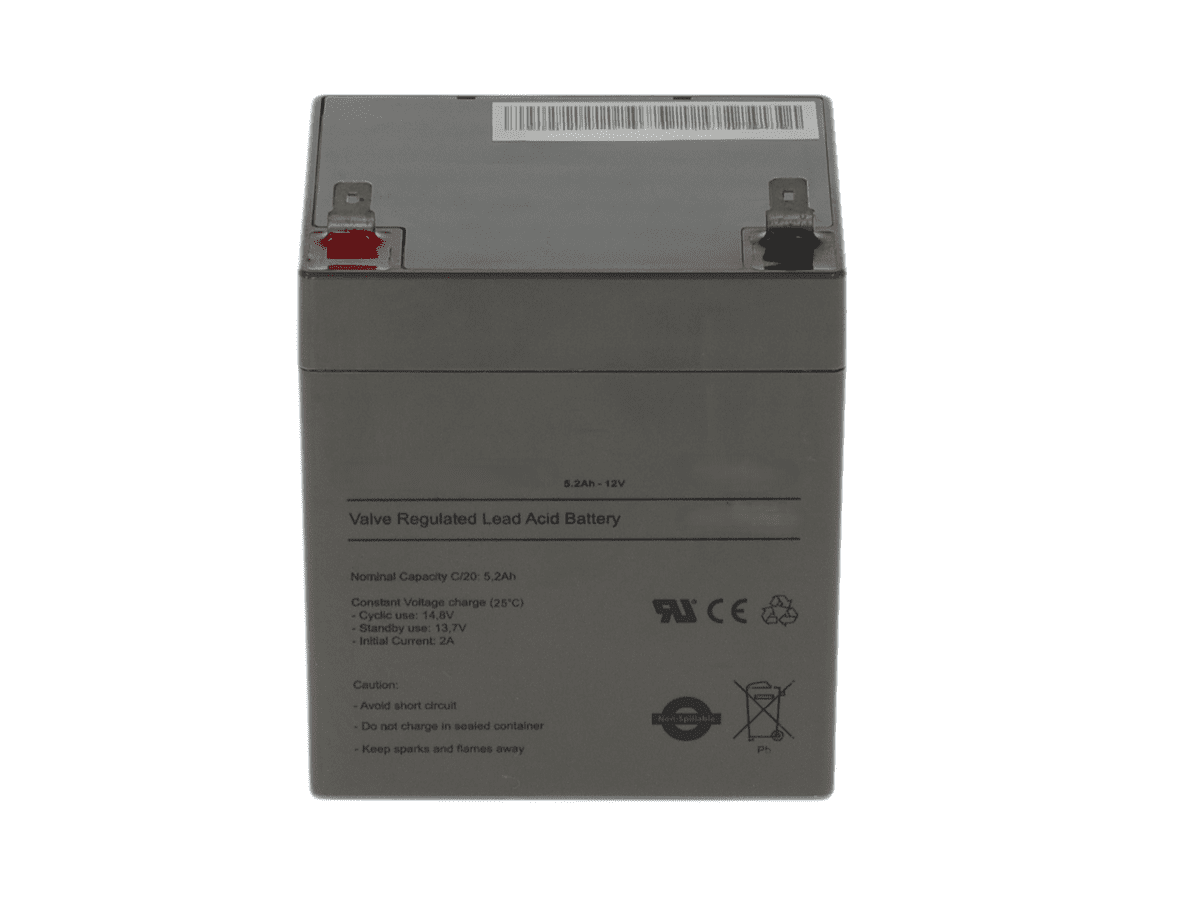

The battery is a sealed, non-spillable, lead-gel stand-by battery for emergency and safety power applications of a robot controller.
There are 2 batteries in the control cabinet. The battery blocks must both be exchanged together.
It is recommended to exchange the batteries every 2 years.
To prevent exhaustive discharge and thus destruction of the batteries during storage, one battery connection must be disconnected (discharge protection) and the batteries must be recharged at regular intervals depending on the storage temperature.
-
If the storage temperature is +20C or lower, recharge the batteries every 9 months.
-
If the storage temperature is between +20C and +30C, recharge the batteries every 6 months.
-
If the storage temperature is between +30C and +40C, recharge the batteries every 3 months.
