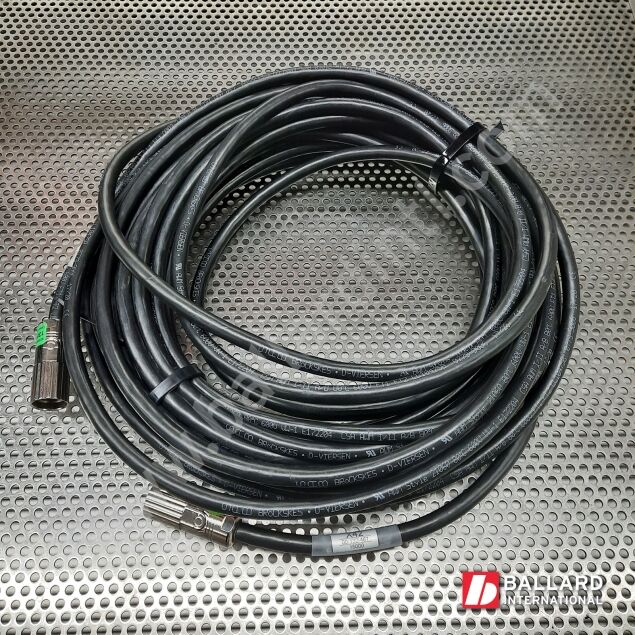

The connecting cable for reference switch is an integral part of the reference switch module that is needed to carry out the mastering test. The connecting cable has a 7-pole M17 power connector at each end. The connector design is a female connector at one end and a male connector at the other end.
SPECIFICATIONS FOR 00-132-467:
|
Component |
Reference sensor cable |
|---|---|
|
Installation type |
Suitable for cable carrier |
|
Maximum outer diameter |
9.7 mm |
|
Minimum bending radius |
5x outer diameter, static; 10x outer diameter, dynamic |
|
Length |
15 m |
