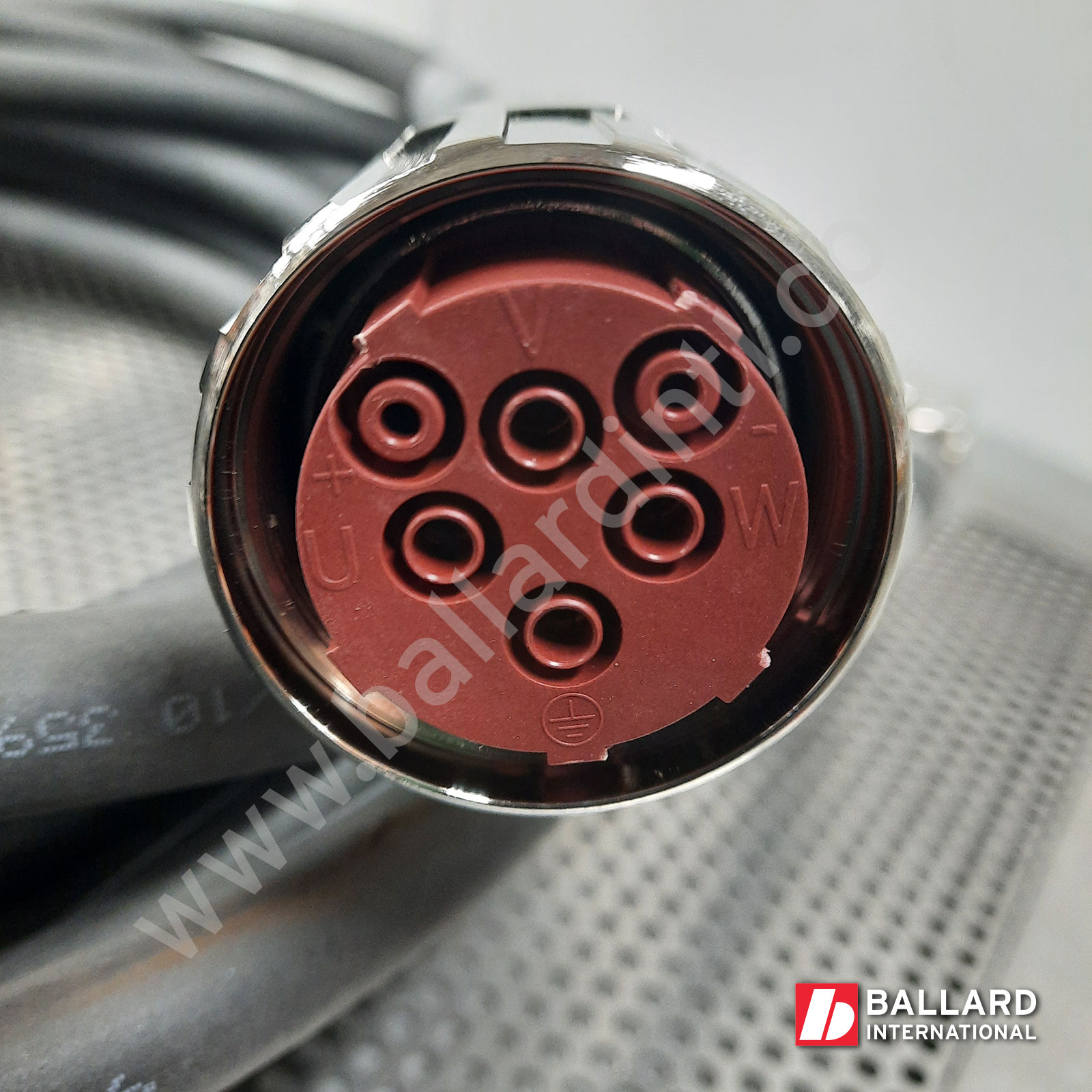

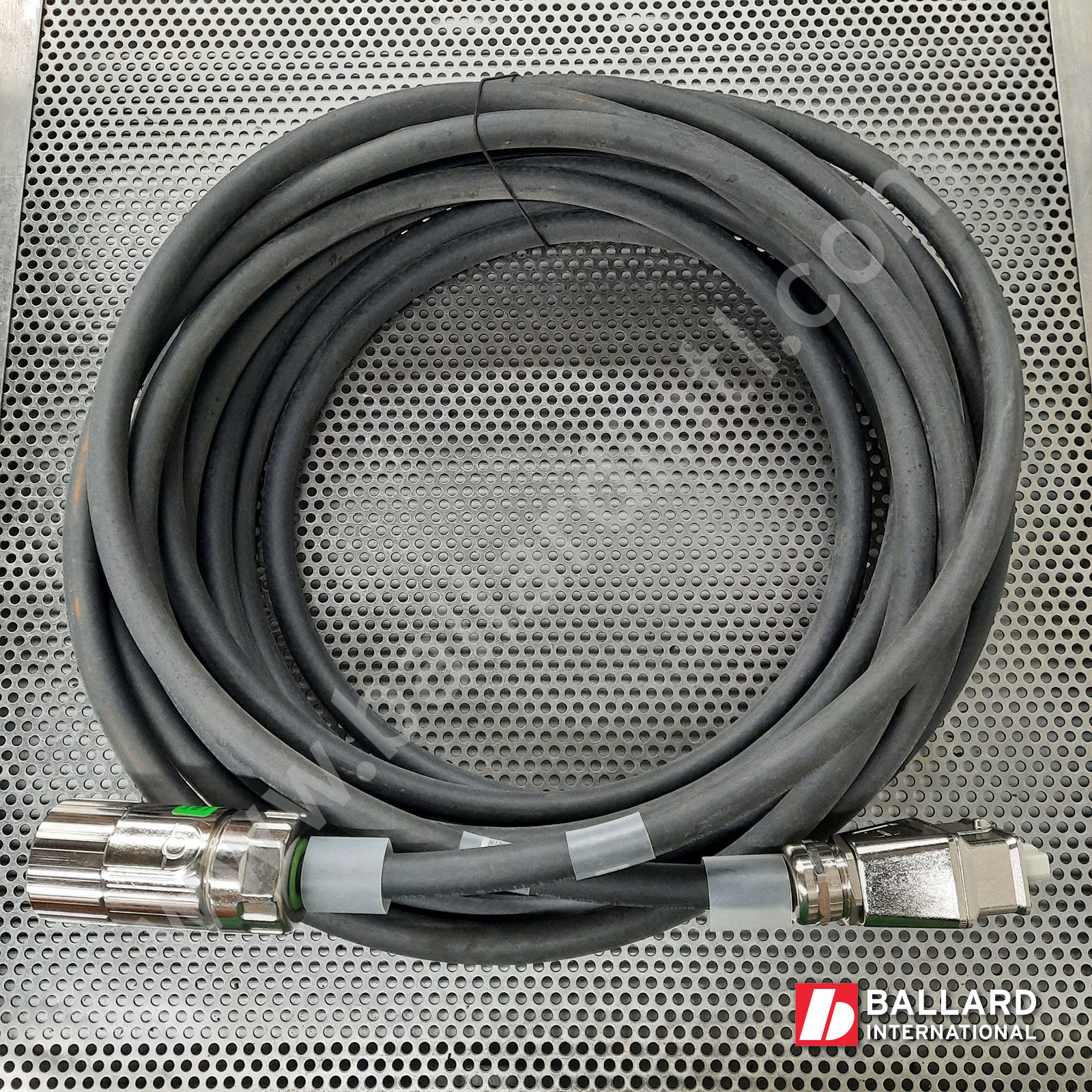

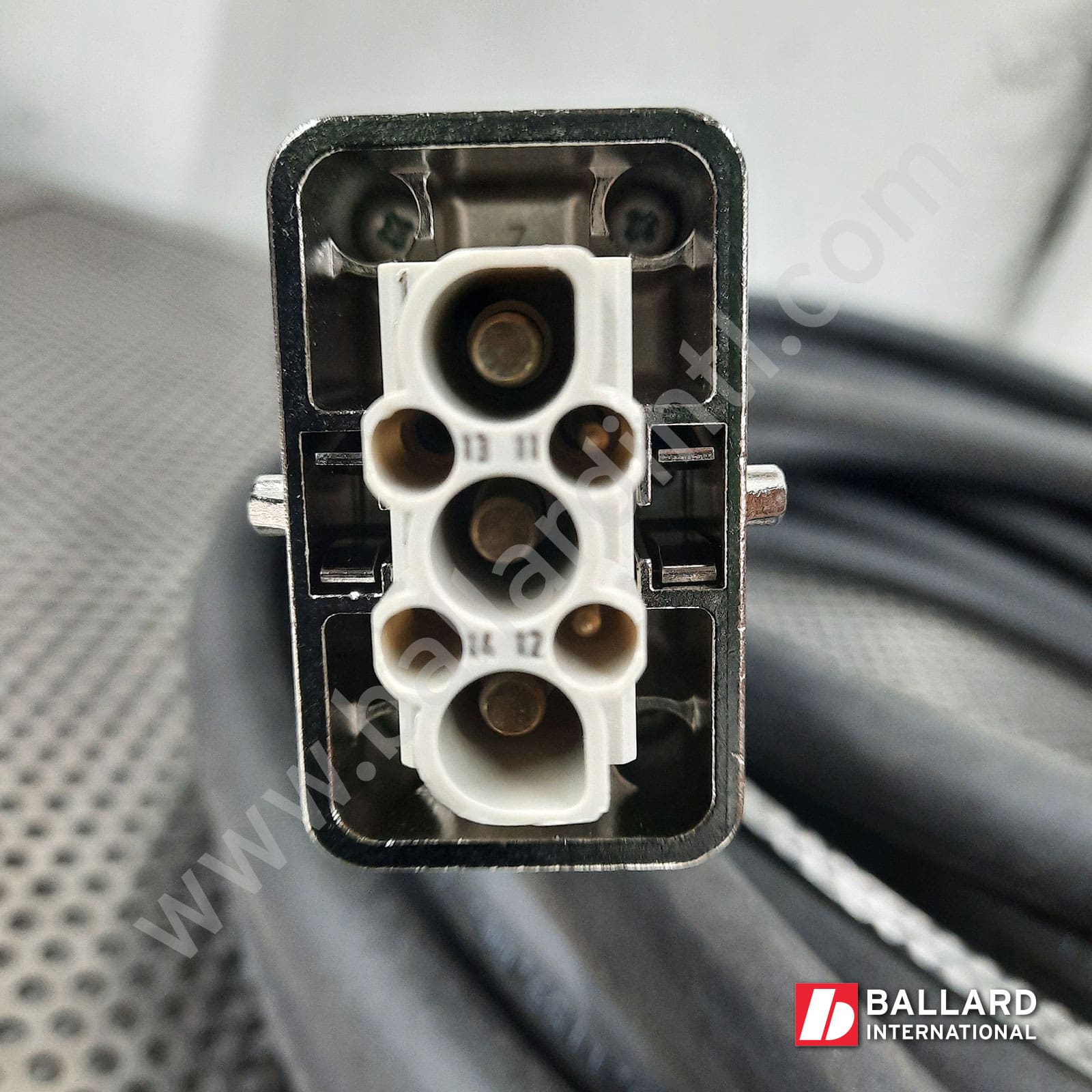

The cable is a single-motor cable (MOT) 6mm² from the controller to the motor.
SPECIFICATIONS FOR 00-196-896:
- For use with KUKA KRC4 Controllers
- KUKA Article No.: 196896
- Length: 15 Meters
|
Component |
Motor cable |
|---|---|
|
Installation type |
Suitable for cable carrier |
|
Maximum outer diameter |
16.5 mm |
|
Minimum bending radius |
3x outer diameter, static; 7x outer diameter, dynamic |
|
Length |
15 m |
|
Sheath material |
PUR |
|
UL approval |
true |
|
Oil-resistant |
true |
|
Halogen-free |
true |
|
Flammability |
Flame-retardant |
|
Ambient temperature during operation |
-30 °C to 80 °C (243 K to 353 K) |
|
Rated voltage |
450 V/750 V Uo/U acc. to VDE; 600 V acc. to UL/CSA |
