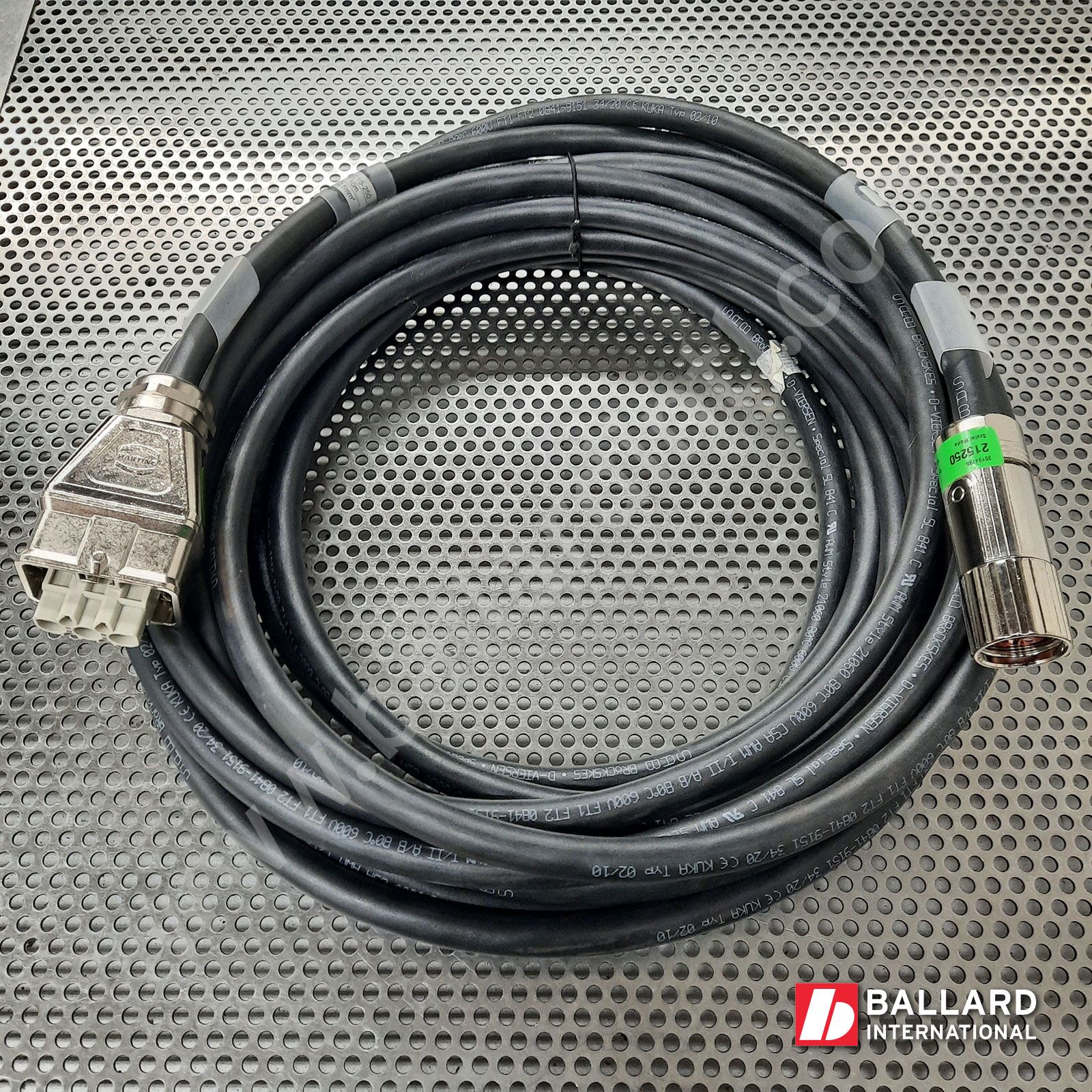

The cable is a single-motor cable (MOT) 2.5mm² from the controller to the motor.
SPECIFICATIONS FOR 00-215-250:
- KUKA Article No.: 215250
- Length: 10 Meters
Component | Motor cable |
---|---|
Installation type | Suitable for cable carrier |
Maximum outer diameter | 12 mm |
Minimum bending radius | 3x outer diameter, static; 7x outer diameter, dynamic |
Length | 10 m |
Sheath material | PUR |
UL approval | true |
Oil-resistant | true |
Halogen-free | true |
Flammability | Flame-retardant |
Ambient temperature during operation | -40 °C to 90 °C (233 K to 363 K) |
Rated voltage | 450 V/750 V Uo/U acc. to VDE; 600 V acc. to UL/CSA |
