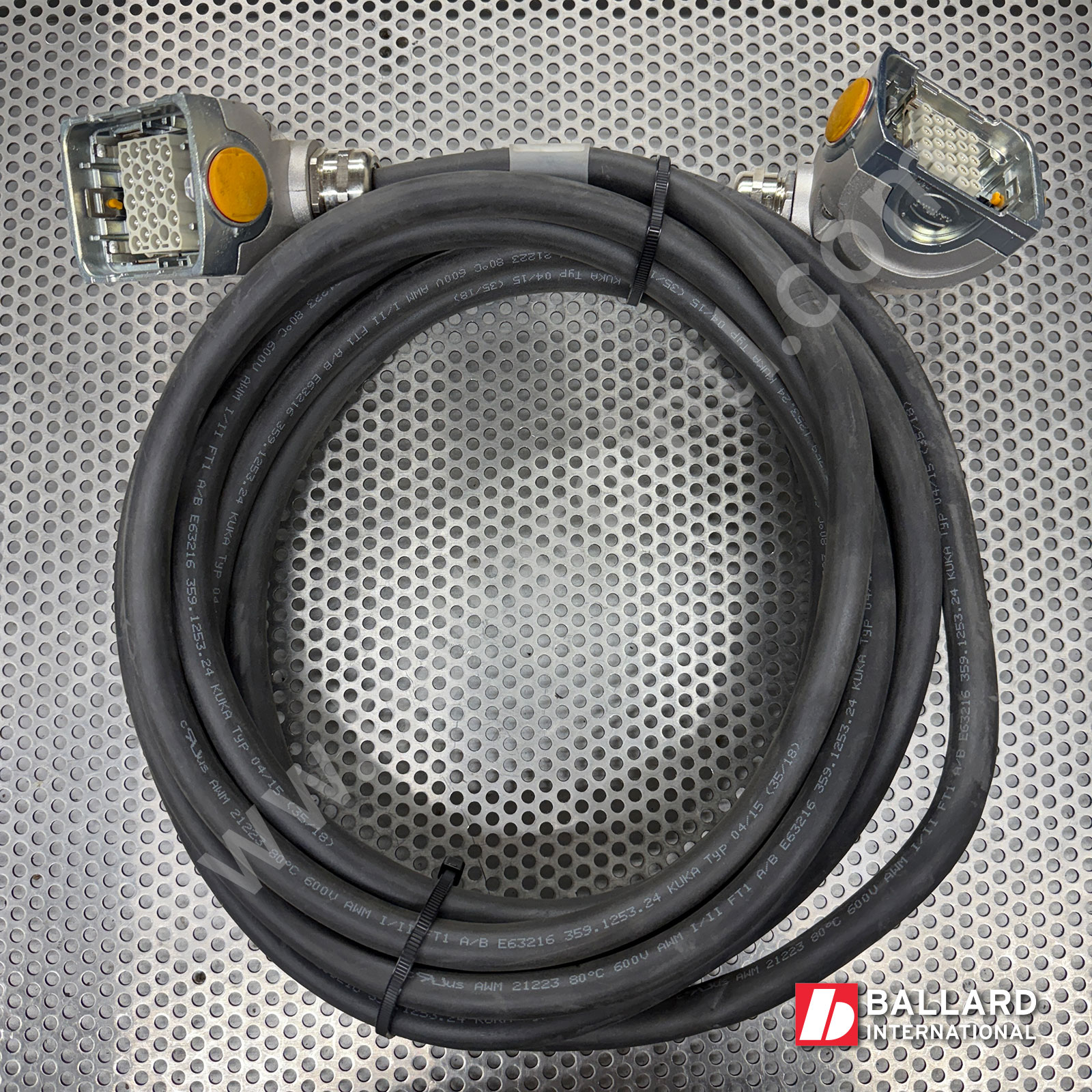

KUKA A1-A6 Motor Cable H-H Yellock30 – 7m

00-261-092

Condition

Clear

Same Day Shipping

For orders placed by 4 PM (EST).
Orders placed after 4 PM (EST) will ship out on the next business day.

100% satisfaction guarantee

Shop with confidence knowing all used parts are tested and guaranteed to be in good working condition.

Product Information

SPECIFICATIONS FOR 00-261-092:

The cable is a motor cable for axes 1-6 from the KR C4 compact robot controller to the KUKA robot.
Length = 7 meters
X20/X30
This cable is part of Cable set 7m CON-S (264252)

BASIC DATA:

Component	Motor cable
Installation type	Fixed installation only
Maximum outer diameter	14.5 mm
Minimum bending radius	3x outer diameter, static
Length	7 m
Sheath material	PUR
UL approval	true
Oil-resistant	true
Halogen-free	true
Flammability	Flame-retardant
Ambient temperature during operation	-40 °C to 90 °C (233 K to 363 K)
Rated voltage	450 V/750 V Uo/U acc. to VDE; 600 V acc. to UL/CSA

Alternate Part Number
261092
