SPECIFICATIONS:
FANUC Ordering Specification : A05B-1426-K001

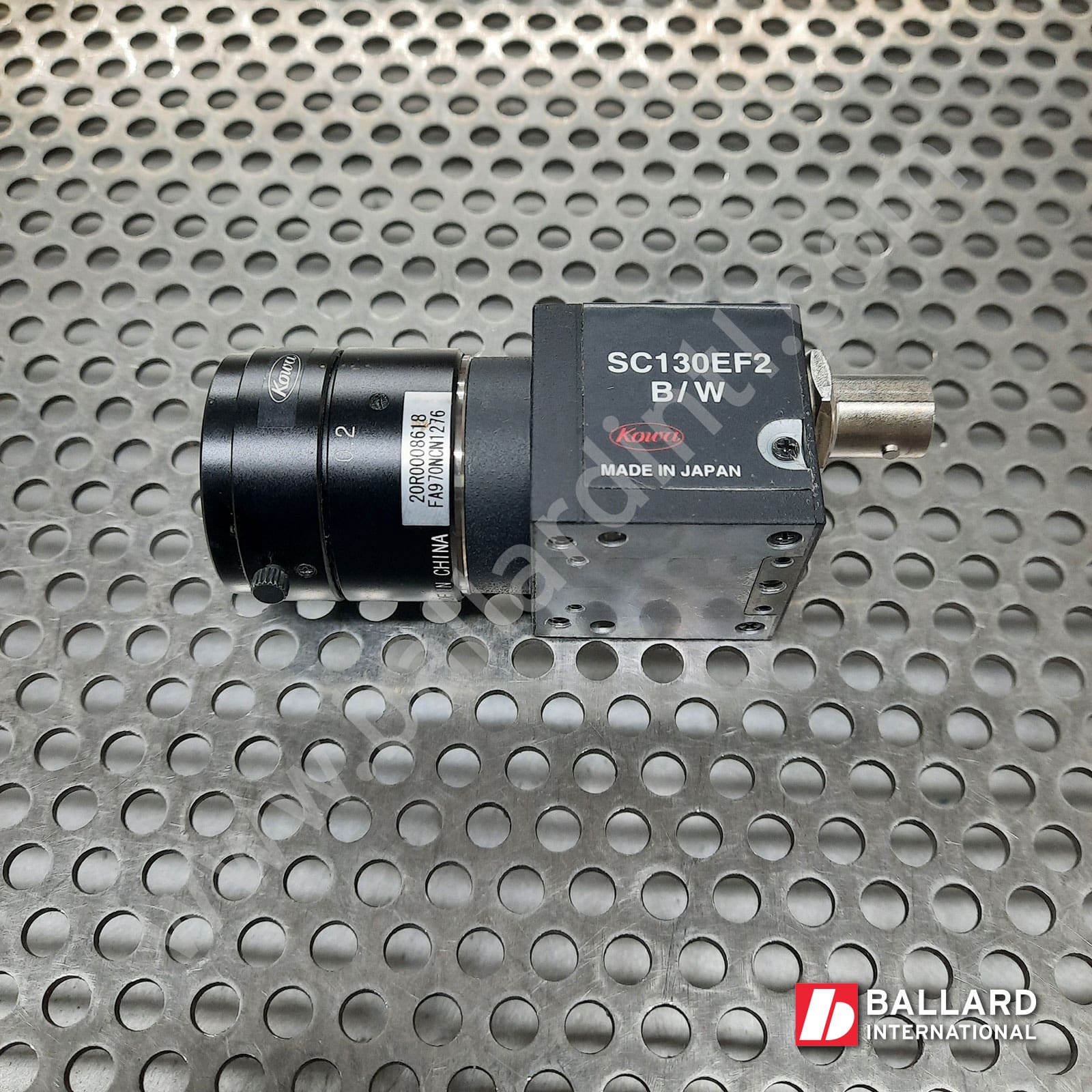

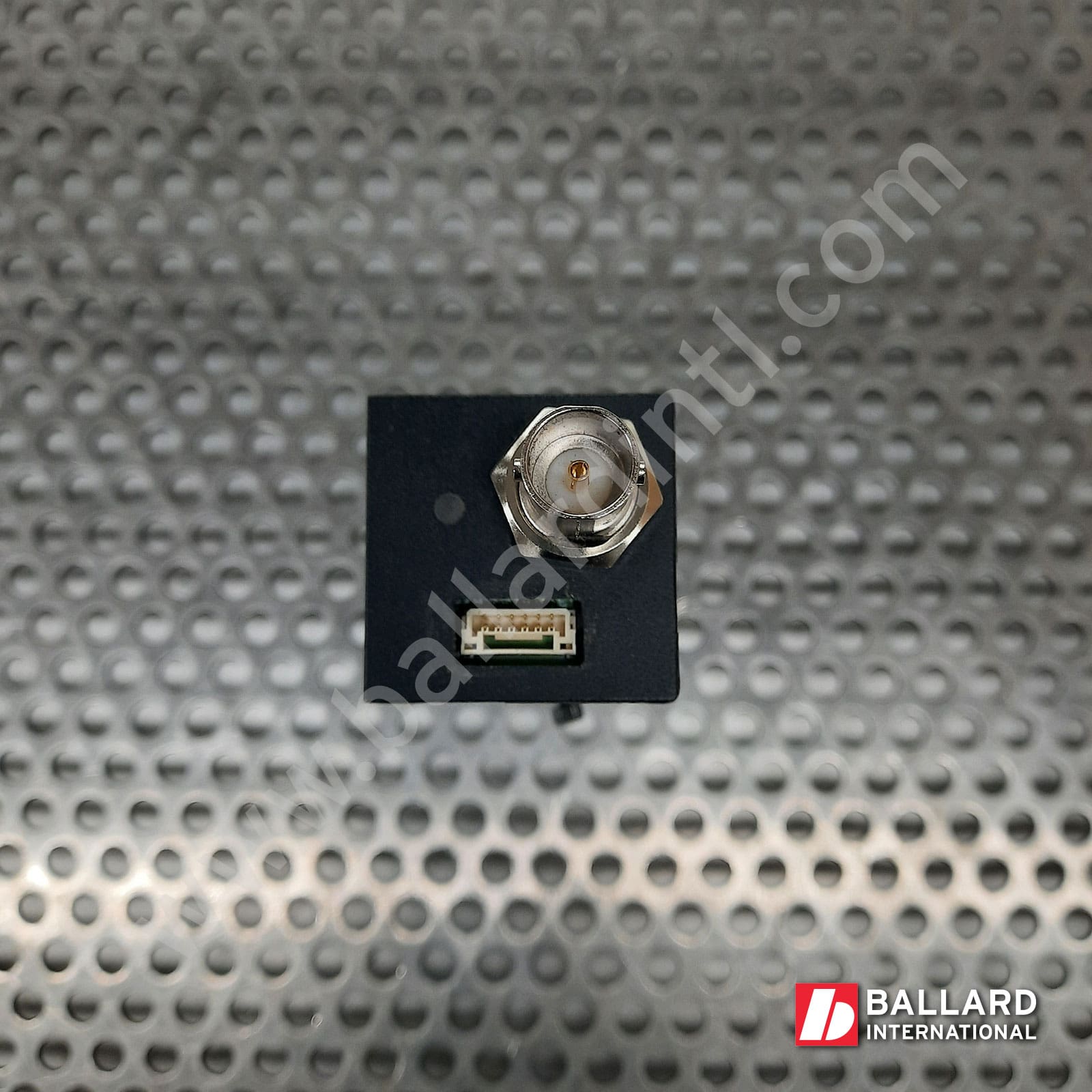

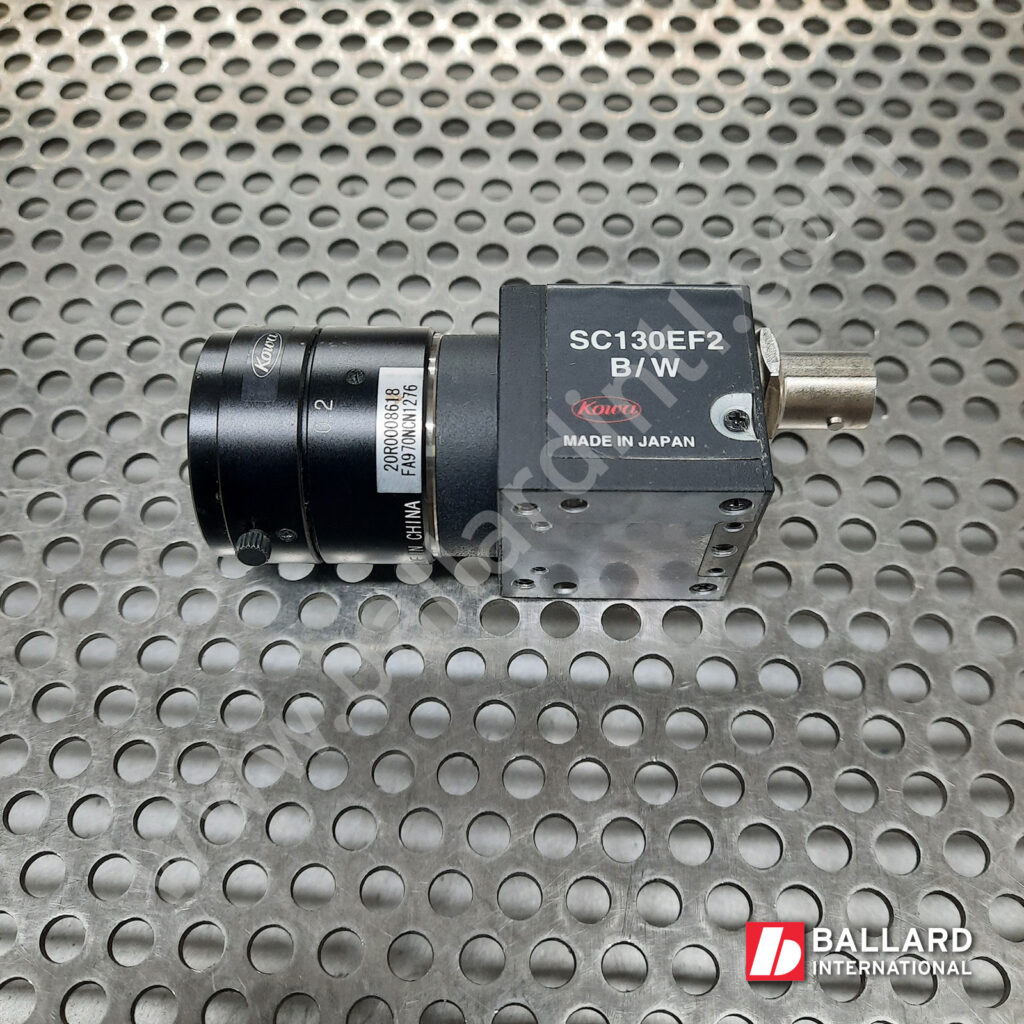

KOWA SC130EF2 B/W iR Vision CXV Camera:
- CMOS Camera
- 1/1.8 Progressive Scan
- CXV
- Grayscale/B&W

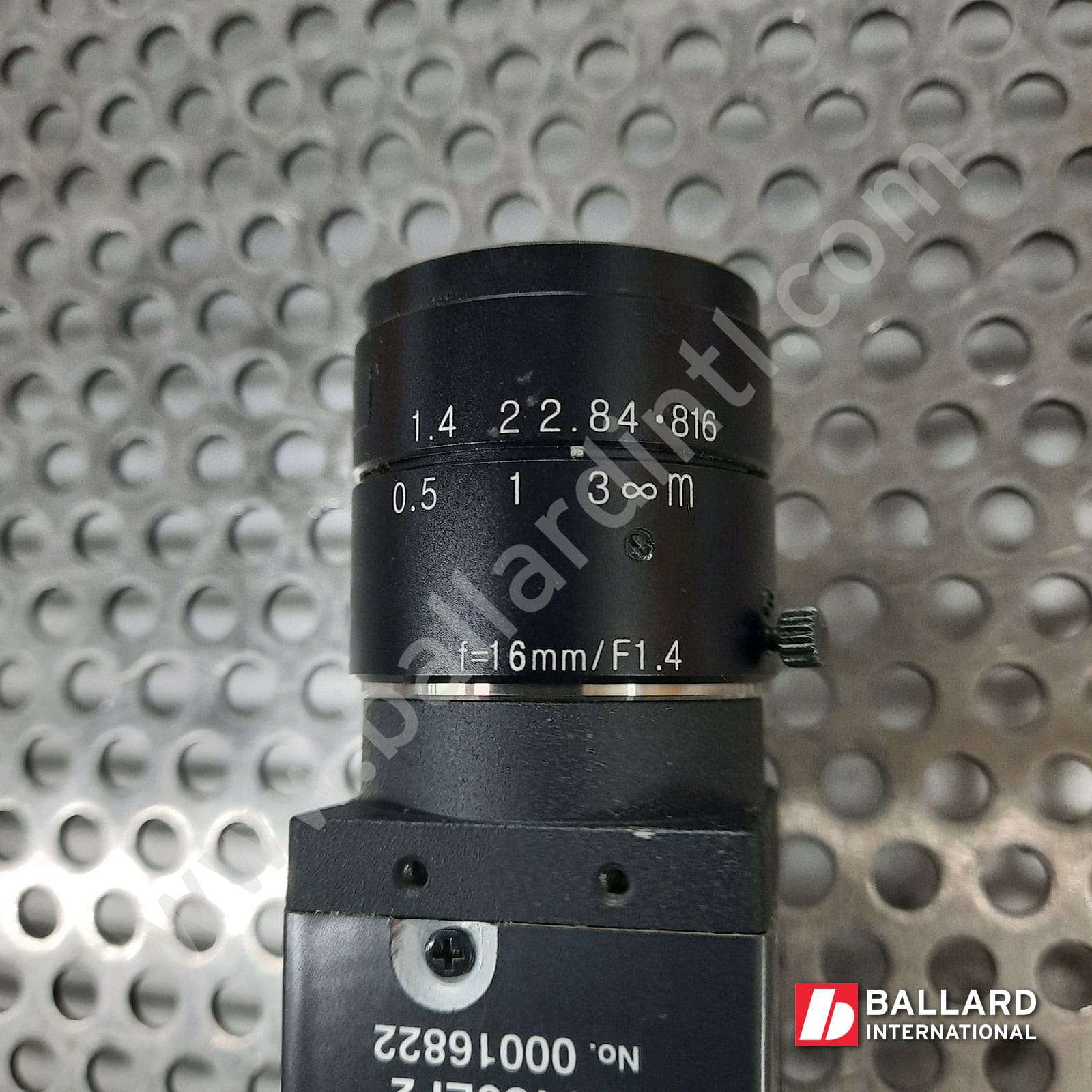

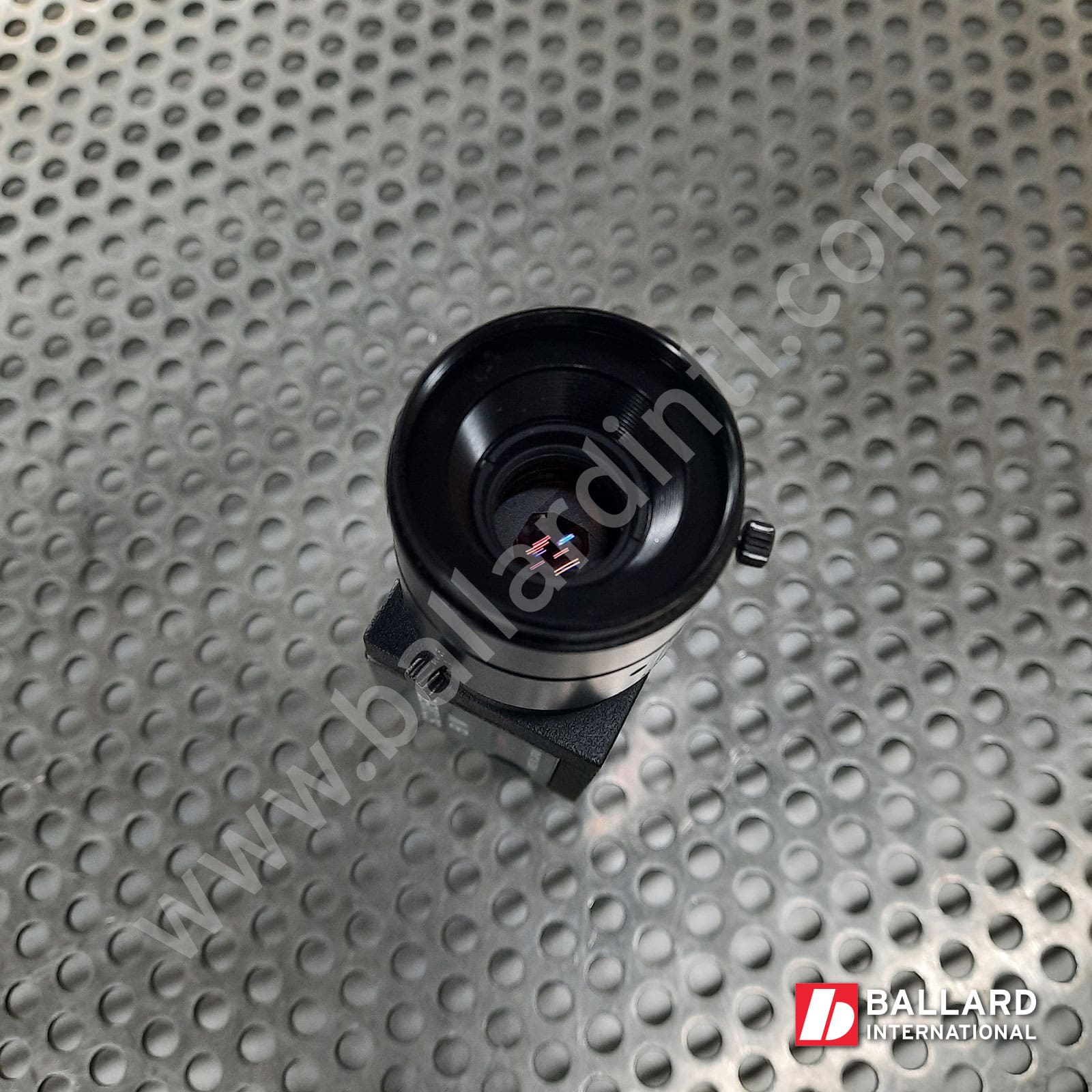

KOWA LM16HC 1″ 16mm 5MP C-Mount Lens:
| Aperture (F-stop): | 1,4 – 16 |
|---|---|
| Aperture (control): | Manual |
| Application field: | Broadcast, ITS/Traffic Control |
| Back focus in air (mm): | 12,6 |
| Control (focus): | Manual |
| Field of view at minimum working distance, horizontal (mm): | 251,5 |
| Field of view at minimum working distance, vertical (mm): | 186,2 |
| Filter size (mm): | M35,5 x P0,5 |
| Focal length (mm): | 16 |
| Focus range (m): | 0,3 – ∞ |
| Megapixel: | 5 |
| Mount: | C-mount |
| Pixel size (µm): | 5 |
| Resolution, centre (lp/mm): | 120 |
| Resolution, margin (lp/mm): | 80 |
| Sensor size: | 1″ |
| Series: | HC |
| Size (mm): | Ø43 X 52,9 |
| TV distortion (%): | -1 |
| Temperature range (℃): | -10°C – +50°C |
| Type of lens: | Fixed Focal Lens |
| Wavelength range: | Peak Coating (400nm – 1000nm) |
| Weight (g): | 150 |
