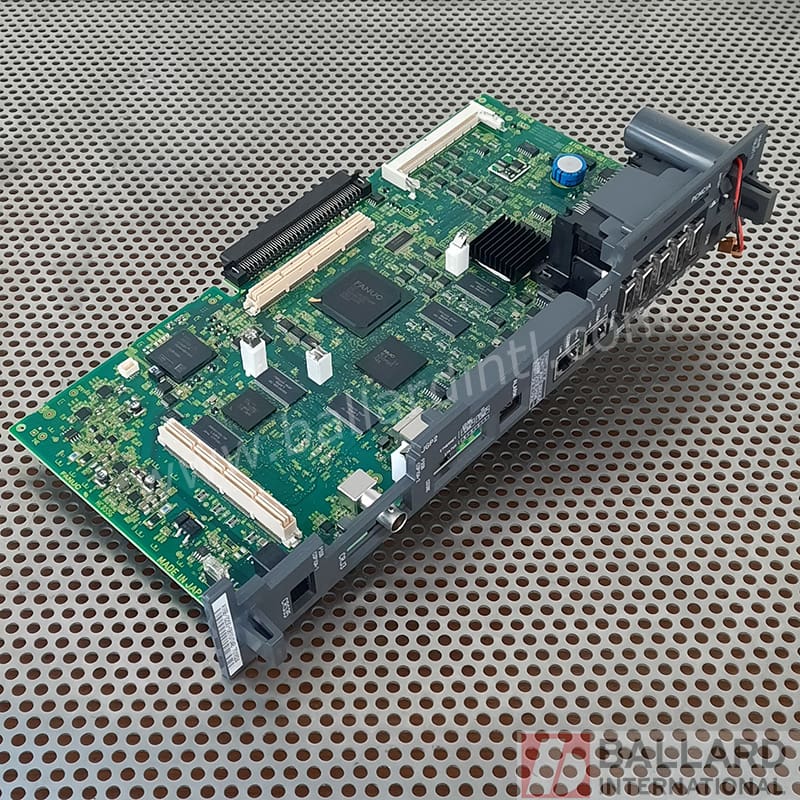

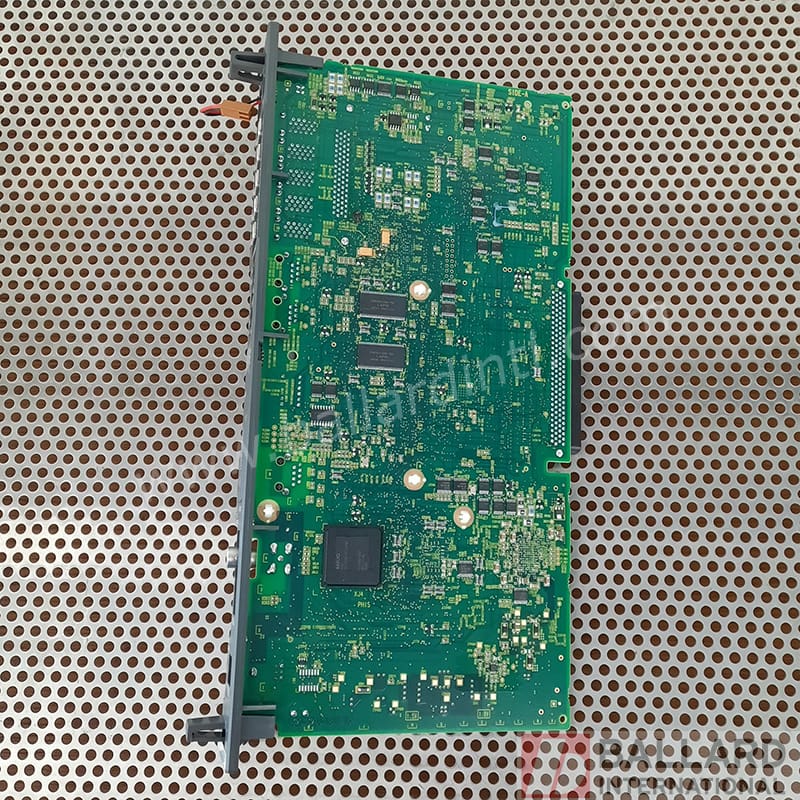

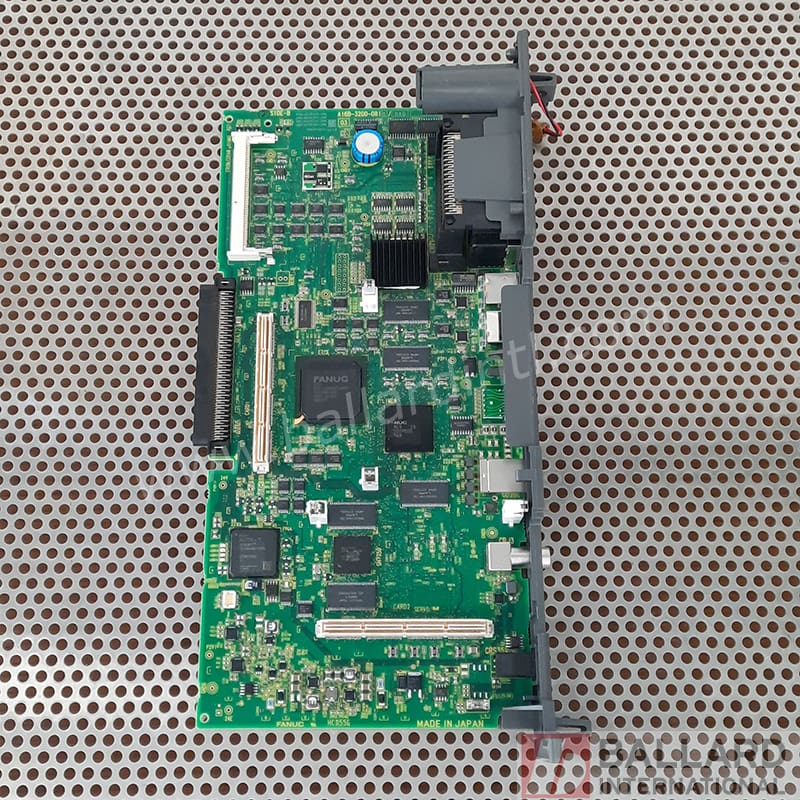

FANUC Main PCB Standard

[show_product_sku]

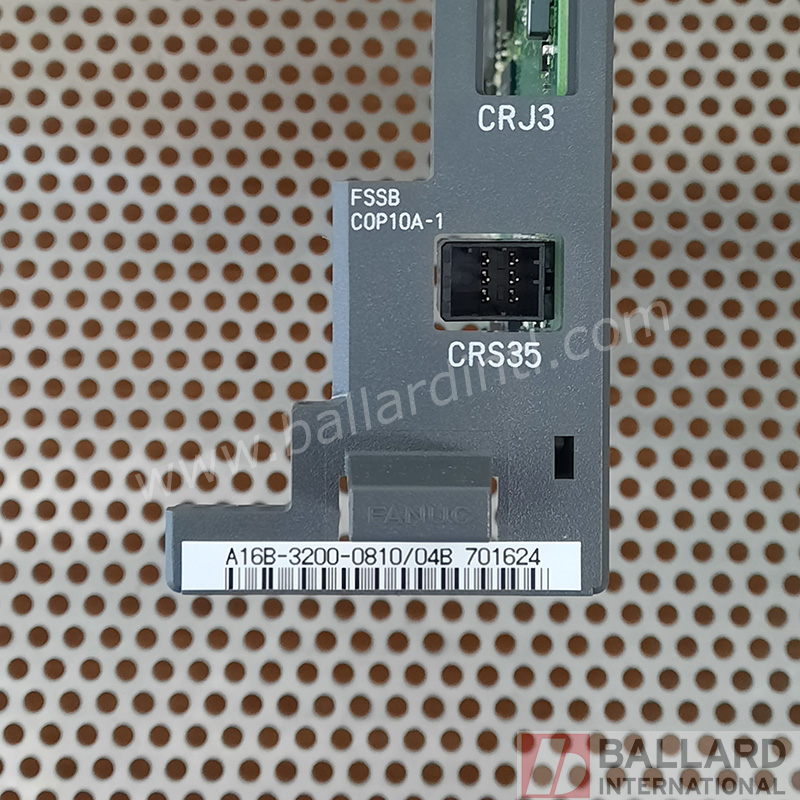

A16B-3200-0810
-
+
[request_a_quote]
Same Day Shipping
For orders placed by 4 PM (EST).
Orders placed after 4 PM (EST) will ship out on the next business day.

100% satisfaction guarantee

Shop with confidence knowing all used parts are tested and guaranteed to be in good working condition.

Product Information

Note: This listing is for the main board only; the daughterboards are not included. Most axis control cards, CPU cards, and FROM/SRAM modules are available for purchase separately—see Related Parts. If you do not see the option you are looking for, contact us for more info!

SPECIFICATIONS:

  • Main Board/PCB for FANUC R-30iB Plus Controllers.
    • Standard Option, RS232C 1ch, For I/O Link i slave
    • See Alternate Main Boards for other options
  • The main board is an important component that stores the robot’s programs and configurations. It also controls servo mechanism positioning.
  • Contains: microprocessor, peripheral circuits, memory, and operator’s panel control circuit.
  • There are various cards and module options that may be installed horizontally to the main board.
  • FANUC ordering specification #: A05B-2670-H001

Related Parts:

Alternate Main Boards – R-30iB Plus:

  • A16B-3200-0811: Force Sensor, 1 Channel, I/O Link Option
  • A16B-3200-0812: Force Sensor, High Speed, 1 Channel, I/O Link Option
  • A16B-3200-0814: Standard, 1 Channel, Without Vision I/F, I/O Link Option
  • A16B-3200-0815: Force Sensor, 1 Channel, Without Vision I/F, I/O Link Option
  • A16B-3200-0816: Force Sensor, High Speed, 1 Channel, Without Vision I/F, I/O Link Option
  • A16B-3200-0817: Force Sensor, High Speed, 2 Channel, I/O Link Option
  • A16B-3200-0818: Force Sensor, High Speed, 2 Channel, Without Vision I/F, I/O Link Option

CPU Card Options – R-30iB Plus:

  • A17B-3301-0250: SDRAM 1GB

Axis Control Card Options – R-30iB Plus:

FROM/SRAM Module Options – R-30iB Plus:

  • A20B-3900-0293: FROM 256MB / SRAM 1MB
  • A20B-3900-0295: FROM 256MB / SRAM 2MB
  • A20B-3900-0296: FROM 256MB / SRAM 3MB
