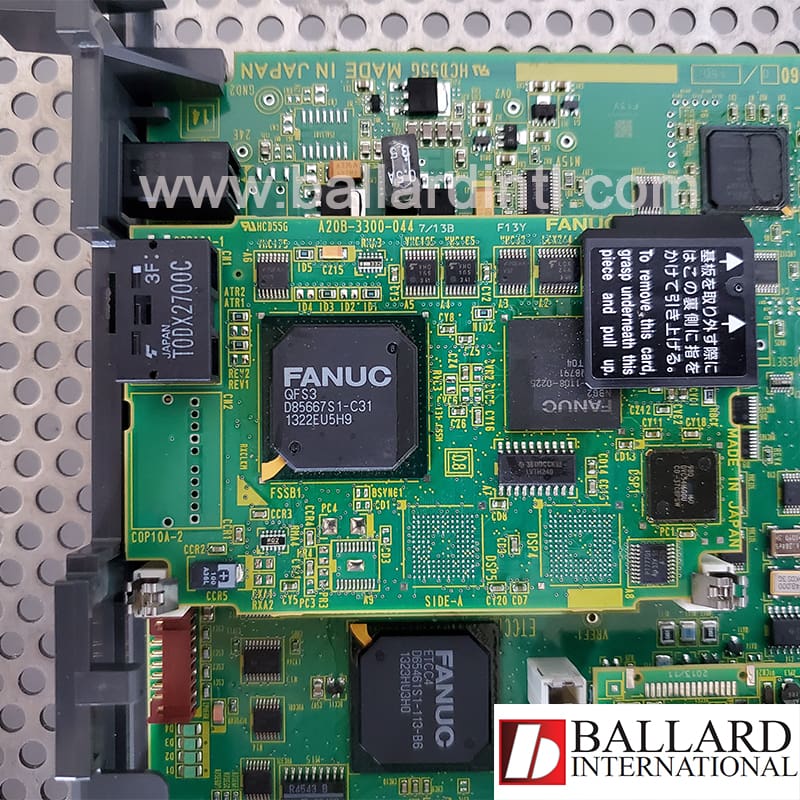

SPECIFICATIONS FOR FANUC A20B-3300-0447:
- For use with FANUC R-J3iC and R-30iA Controllers.
- 12-axis
- This servo card is an option that may be installed horizontally to the main board for FANUC R-30iA Controllers:
- See related parts (below) for R-30iA Main Board options
- Alternative Part #: A05B-2500-H041, A20B-3300-0787
Related Parts:
Alternate Main Boards:
- A16B-3200-0600 (Standard Option)
- A16B-3200-0601 (Force Sensor Option)
CPU Card Options:
- A20B-3400-0020 (SDRAM 32MB)
- A20B-3400-0021 (SDRAM 64MB)
Axis Control Card Options:
- A02B-3300-0445 or A20B-3300-0785 (4-Axis)
- A20B-3300-0448 or A20B-3300-0788 (8-Axis)
- A20B-3300-0447 or A20B-3300-0787 (12-Axis)
- A20B-3300-0442 or A20B-3300-0782 (16-Axis)
See R-30iA Main PCB Card & Module Reference Guide for more information
