SPECIFICATIONS:
- For use with Fanuc R-30iB Controllers.
- 6-axis

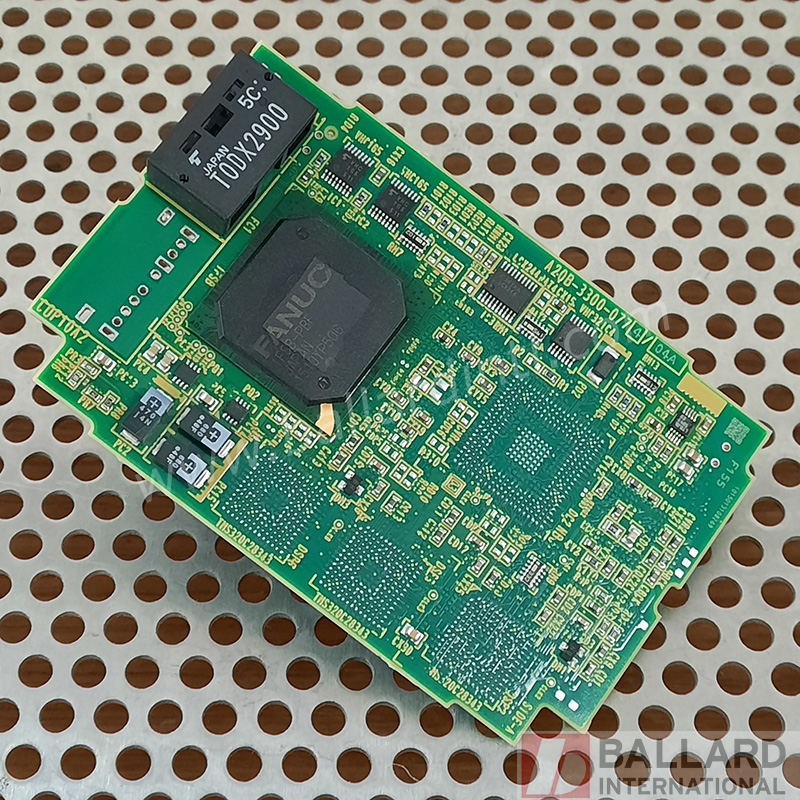

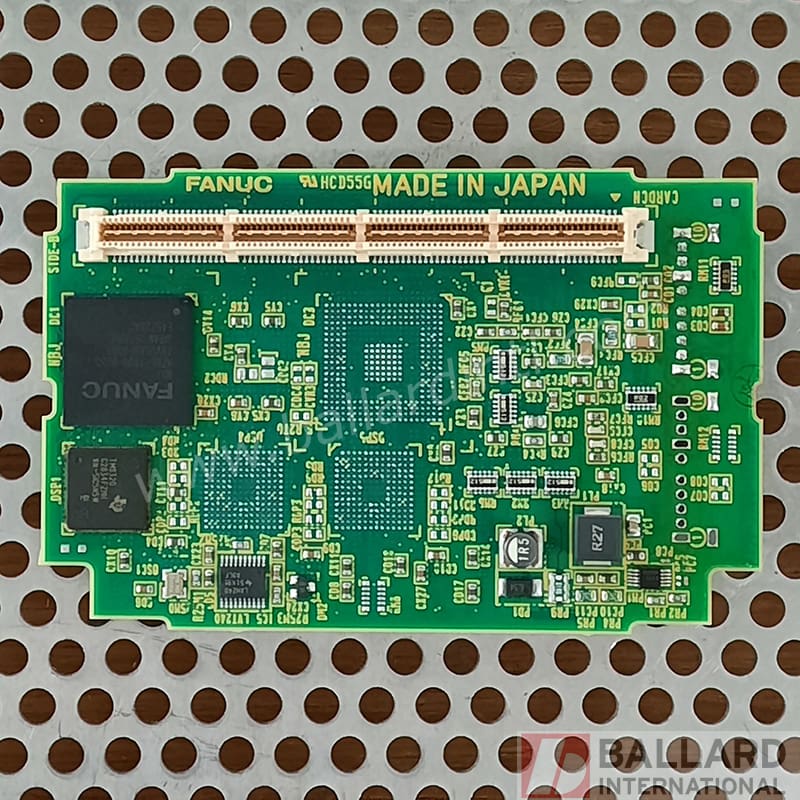

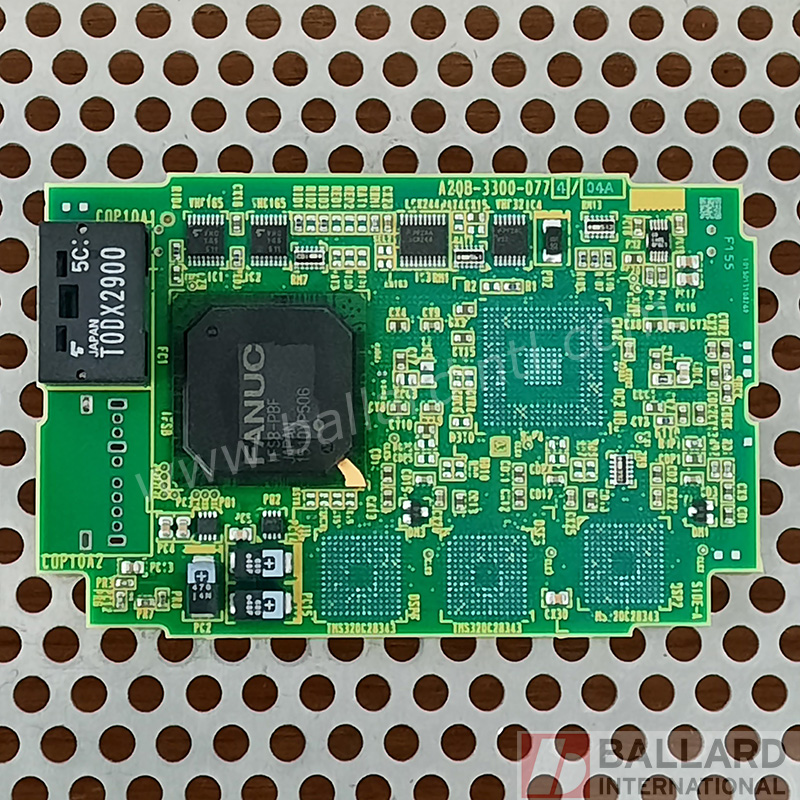

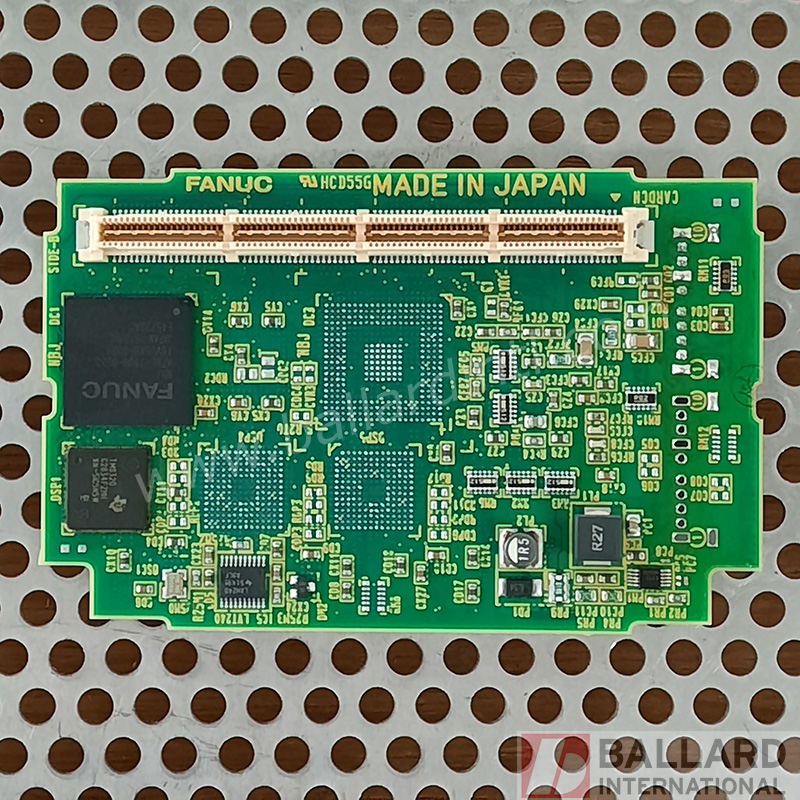

- This servo card is an option that may be installed horizontally to the main board for Fanuc R-30iB and R-30iB Mate Controllers.
- See Related Parts (below) for main board options.
- Alternative Part #s: A05B-2600-H040, A20B-3300-0664
Related Parts:
Additional Axis Servo Card Options – R-30iB:
- A20B-3300-0774 or A20B-3300-0664: 6-Axis
- A20B-3300-0773 or A20B-3300-0663: 12-Axis
- A20B-3300-0772 or A20B-3300-0662: 18-Axis
- A20B-3300-0771 or A20B-3300-0661: 24-Axis
- A20B-3300-0770 or A20B-3300-0600: 32-Axis
Main Board Options – R-30iB:
- A16B-3200-0730 or A16B-3200-0780: Standard Option
- A16B-3200-0731 or A16B-3200-0781: Force Sensor Option
- A16B-3200-0732 or A16B-3200-0782: Force Sensor, High Speed Option
- See R-30iB Main PCB Card & Module Reference Guide for more information
Main Board Options – R-30iB Mate:
- A20B-8200-0790: Standard Option
- A20B-8200-0791: Force Sensor Option
- A20B-8200-0792: Force Sensor, PMC, HDI Option
- A20B-8201-0420: Standard, 1Ch, I/O Link Option
- A20B-8201-0421: Force Sensor, 2Ch, Vision I/F, I/O Link Option
- A20B-8201-0422: Force Sensor, 2Ch, Vision I/F, PMC, HDI I/O Link Option
- See R-30iB Mate Main PCB Card & Module Reference Guide for more information
