Note: This listing is for the A20B-8201-0752 main board only, the daughterboards are not included. Most axis control cards, CPU cards and FROM/SRAM modules are available for purchase separately, see Related Parts. If you do not see the option you are looking for, contact us for more info!

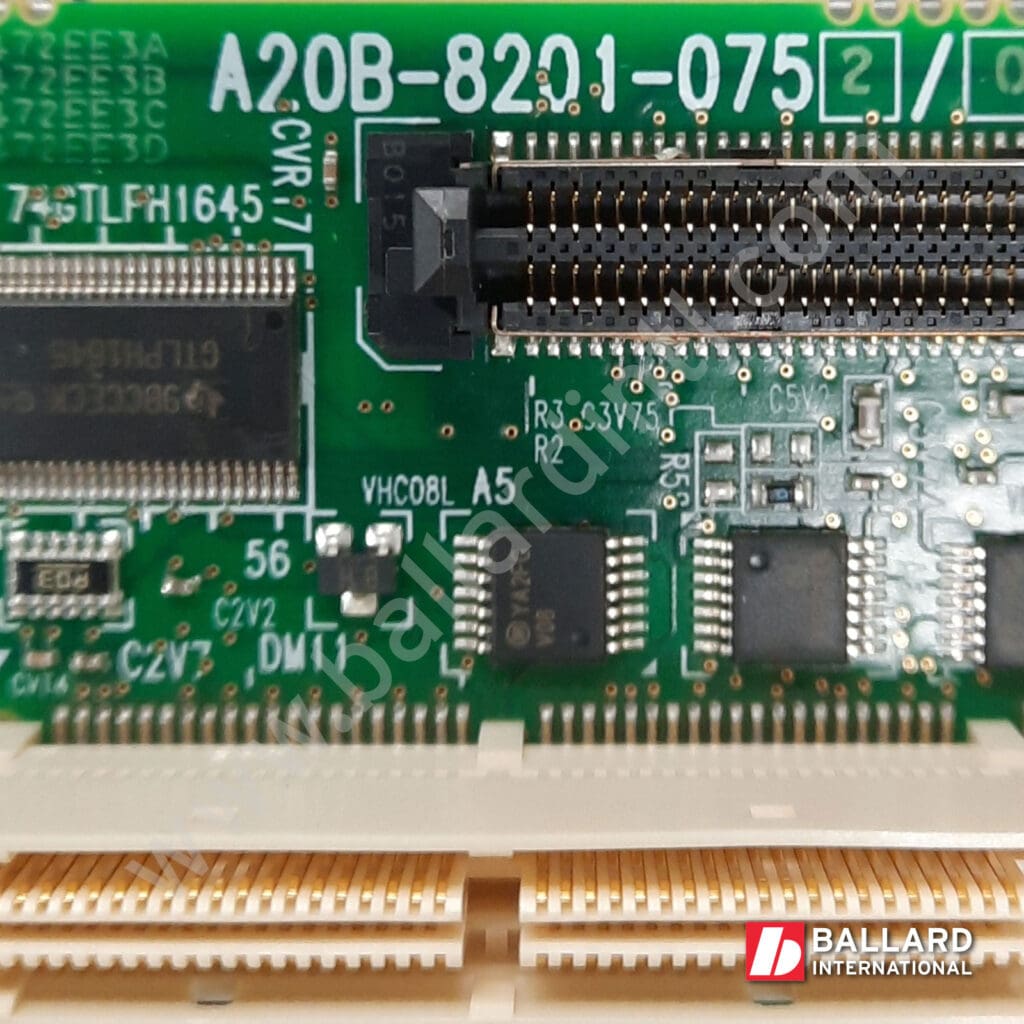

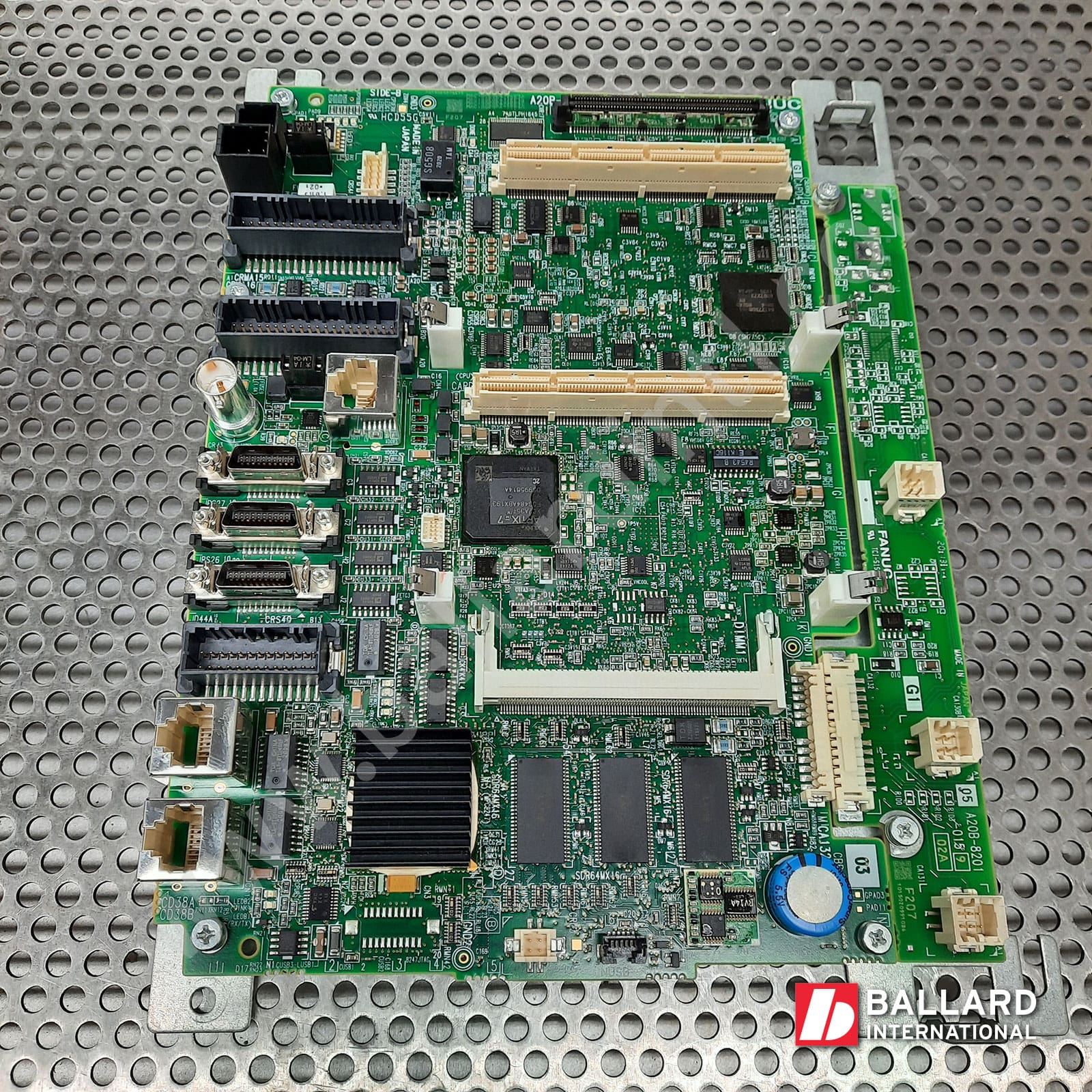

SPECIFICATIONS FOR A20B-8201-0752:
- For use with FANUC R-30iB Mate Plus Controllers.
- Ethernet:2-100BASE-T, 1-1000BASE-T, Vision I/F, Force sensor I/F,PMC, HDI, For I/O Link i slave
- See Related Parts – Main Boards for other options
- The main board is an important component that stores the robot’s programs and configurations. It also controls servo mechanism positioning.
- There are various cards and module options that may be installed horizontally to the main board.
- See Related Parts (below) for card options
- Or view the Main PCB Card & Modules Reference Guide
- FANUC Ordering Specification #: A05B-2680-H003
Related Parts:
Main Boards:
- A20B-8201-0750: Standard, Ethernet:1-100BASE-T, 1-1000BASE-T, For I/O Link i slave
- A20B-8201-0751: Ethernet:2-100BASE-T, 1-1000BASE-T, Vision I/F, Force sensor I/F, For I/O Link i slave
- A20B-8201-0752: Ethernet:2-100BASE-T, 1-1000BASE-T, Vision I/F, Force sensor I/F,PMC, HDI, For I/O Link i slave
Axis Control Card Options:
- A20B-3300-0819: 6-Axis
- A20B-3300-0818: 12-Axis
- A20B-3300-0817: 18-Axis
- A20B-3300-0816: 24-Axis
- A20B-3300-0815: 36-Axis
CPU Card Options:
- A17B-3301-0250: SDRAM 1GB
- A17B-3301-0252: SDRAM 1GB, For I/O Link i slave
FROM/SRAM Module Options:
- A20B-3900-0293 or A17B-3900-0112: FROM 256MB / SRAM 1MB
- A20B-3900-0295 or A17B-3900-0113: FROM 256MB / SRAM 2MB
- A20B-3900-0296 or A17B-3900-0115: FROM 256MB / SRAM 3MB
