Specifically designed for the following FANUC Series Robots:
- M-20iD
- M-20iD/25
- M-20iD/12L
- M-20iD/35
- M-20iD/25
SPECIFICATIONS:
- Pre-drilled with precise FANUC mounting bolt hole pattern
- Pre-drilled holes for mounting the base to the floor
- Height: 800mm
- Base Plate (WxLxT): 457.2mm x 457.2mm x 19.05mm
- Color: White
- Bolt Hole Thread Size: M16 x 2
- Shipping Dimensions: 48″x48″ Pallet
- Weight: 238lbs
CONDITION: NEW
*Lead time may be up to 5 weeks*
This item is shipped via freight. We only ship to businesses with forklift capabilities. Please contact us with any questions you may have.

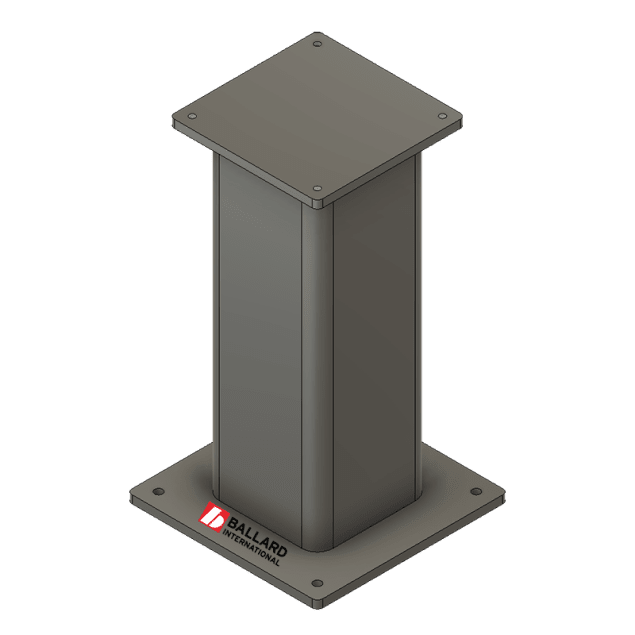

*Please note, the photos on this page are for representation purposes only. Actual robot risers may vary in color, shape, and base/top plate dimensions. All units maintain the specified height and bolt hole patterns.*
