***This listing is for the main board only, the daughterboards are not included. Most axis control cards, CPU cards and FROM/SRAM modules are available for purchase separately, see Related Parts. If you do not see the option you are looking for, contact us for more info!***
SPECIFICATIONS:

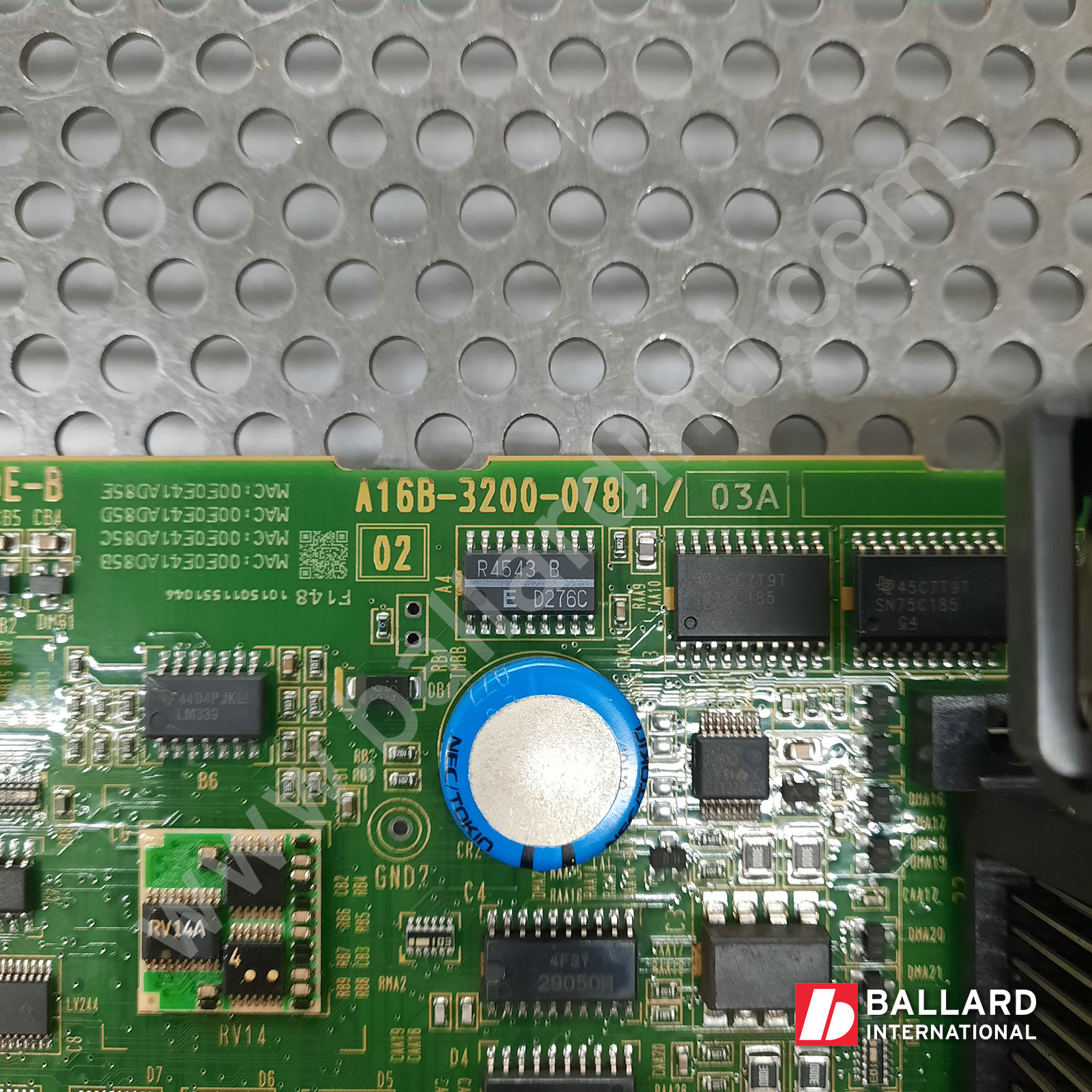

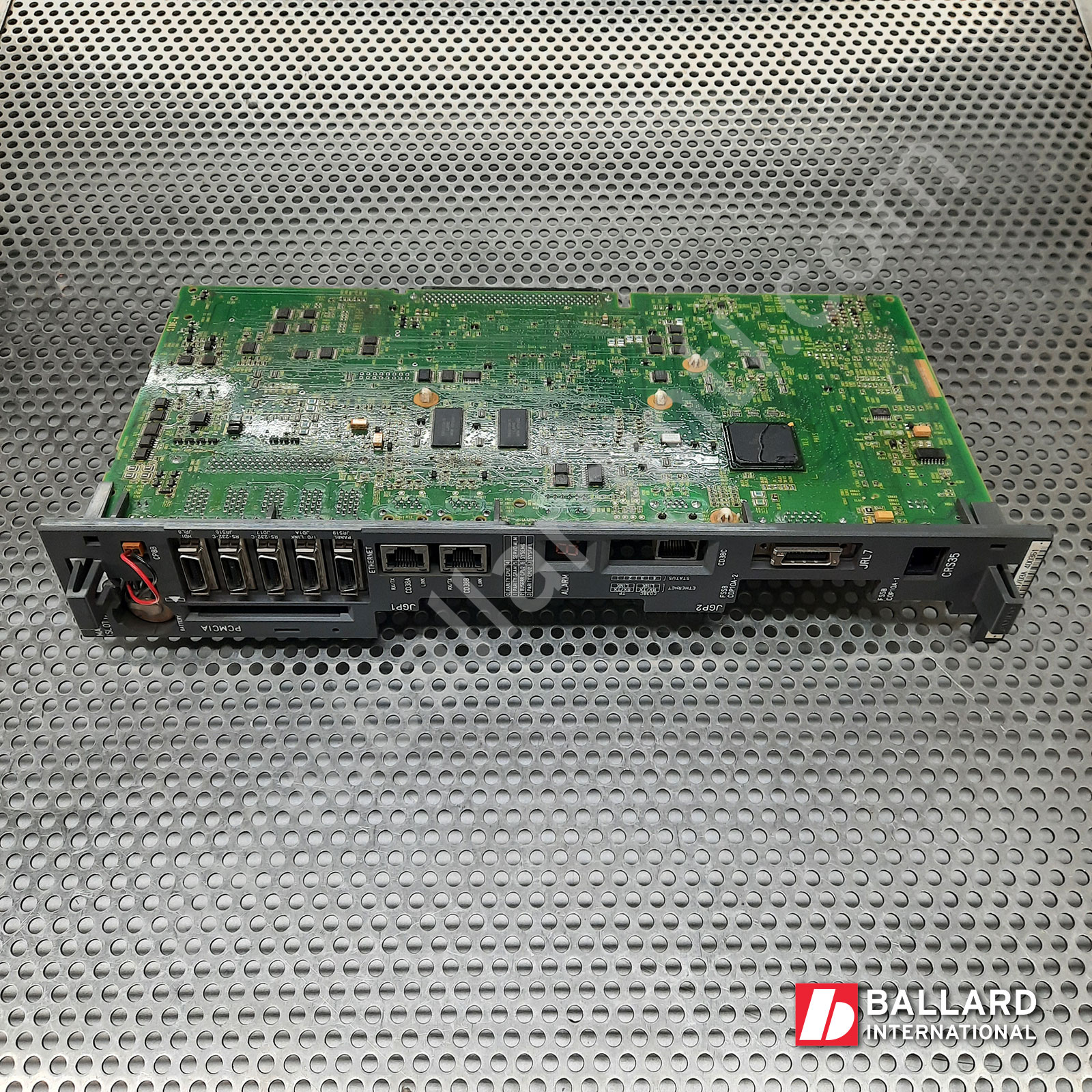

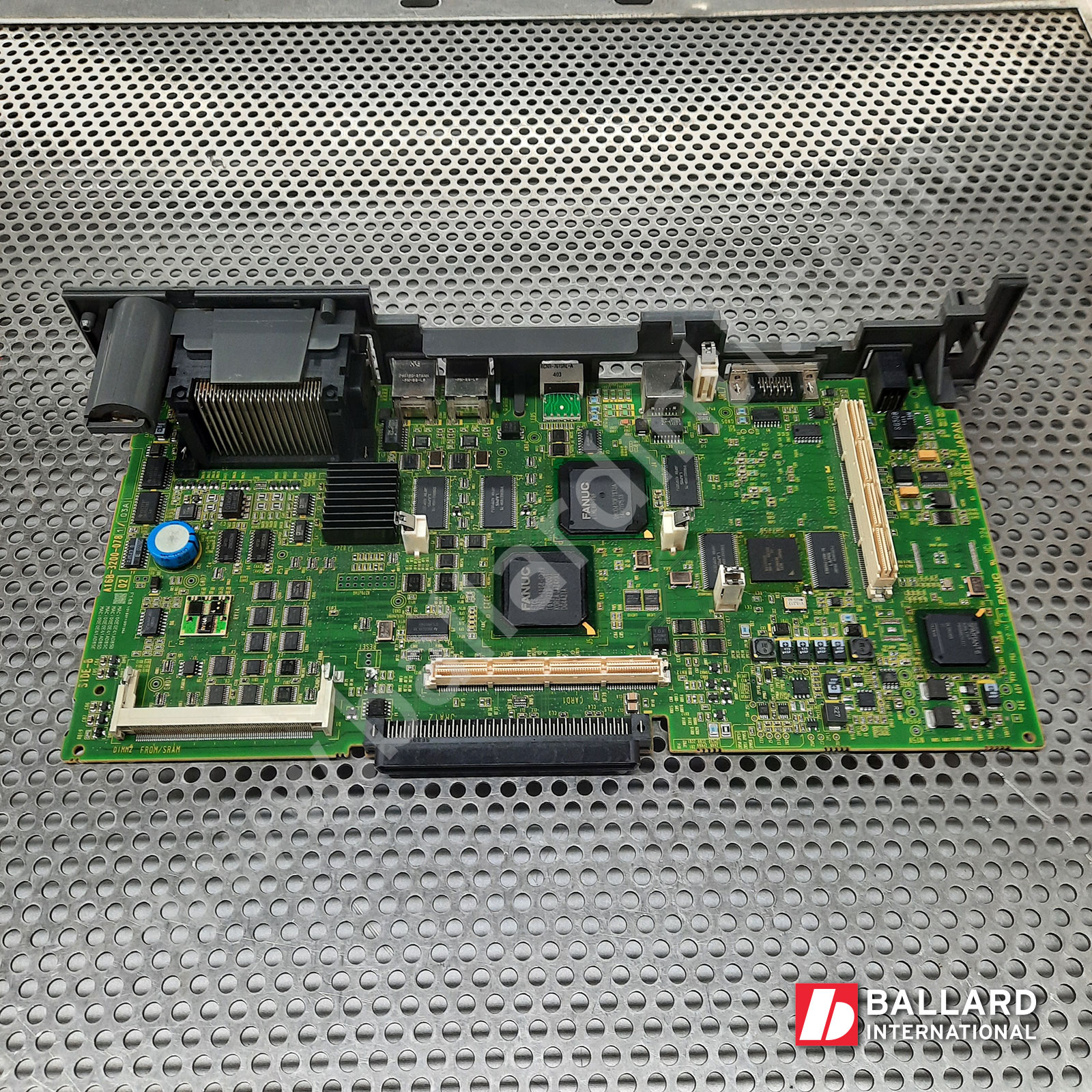

- Main Board/PCB for FANUC R-30iB Controllers.
- Force Sensor Option
- See Alternate Main Boards for other options
- The main board is an important component that stores the robot’s programs and configurations. It also controls servo mechanism positioning.
- Contains: microprocessor, peripheral circuits, memory, and operator’s panel control circuit.

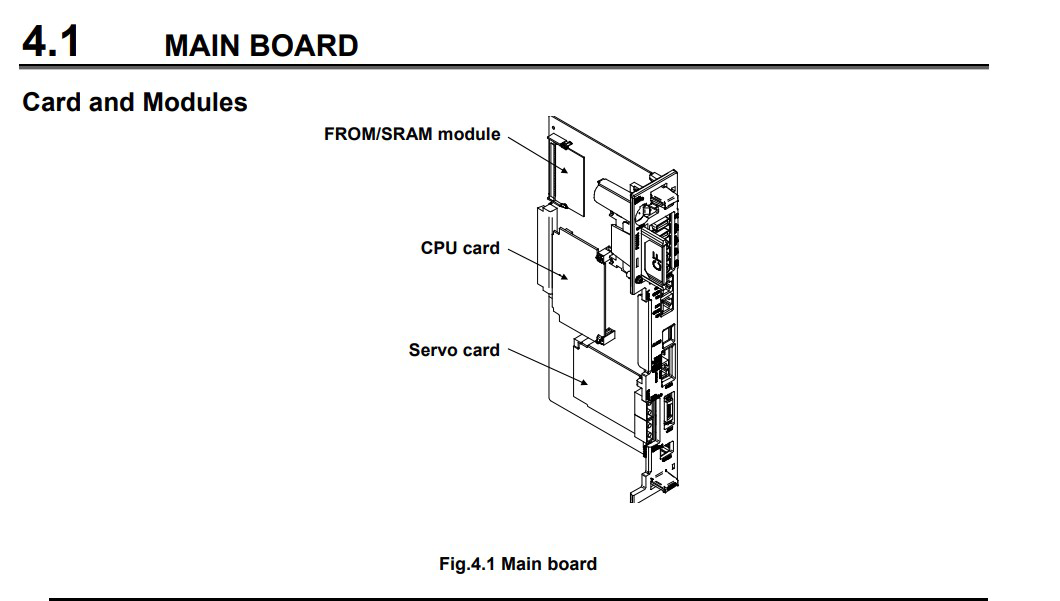

- There are various cards and module options that may be installed horizontally to the main board.
- See Related Parts (below) for card options
- or see R-30iB Main PCB Card & Module Reference Guide for more information
- FANUC Ordering Specification #: A05B-2600-H002
Please note this Main PCB Board replaces the earlier version: A16B-3200-0731 Related Parts: Alternate R-30iB Main Boards: A16B-3200-0780 or A16B-3200-0730 (Standard Option) A16B-3200-0782 or A16B-3200-0732 (Force sensor, High Speed Communication Option) CPU Card Options: A17B-3301-0106 or A20B-3300-0686 (SDRAM 32MB) A17B-3301-0107 or A20B-3300-0687 (SDRAM 64MB) A17B-3301-0108 or A20B-3300-0688 (SDRAM 128MB) Axis Control Card Options: A20B-3300-0664 or A20B-3300-0774 (6-Axis) A20B-3300-0663 or A20B-3300-0773 (12-Axis) A20B-3300-0662 or A20B-3300-0772 (18-Axis) A20B-3300-0661 or A20B-3300-0771 (24-Axis) A20B-3300-0660 or A20B-3300-0770 (36-Axis) FROM/SRAM Module Options A20B-3900-0297 or A20B-3900-0283 (FROM 32MB/ SRAM 1MB) A20B-3900-0298 or A20B-3900-0284 (FROM 32MB/ SRAM 2MB) A20B-3900-0299 or A20B-3900-0285 or (FROM 32MB/ SRAM 3MB) A20B-3900-0286 (FROM 64MB/ SRAM 1MB) A20B-3900-0287 (FROM 64MB/ SRAM 2MB) A20B-3900-0288 (FROM 64MB/ SRAM 3MB) A20B-3900-0280 (FROM 128MB/ SRAM 1MB) A20B-3900-0281 (FROM 128MB/ SRAM 2MB) A20B-3900-0282 (FROM 128MB/ SRAM 3MB)
