Specifically designed for the following FANUC R-2000 Series Robot Models:
- R-2000iC
- R-2000iB*
- R-2000iA*
*Excluding 200T models
SPECIFICATIONS:

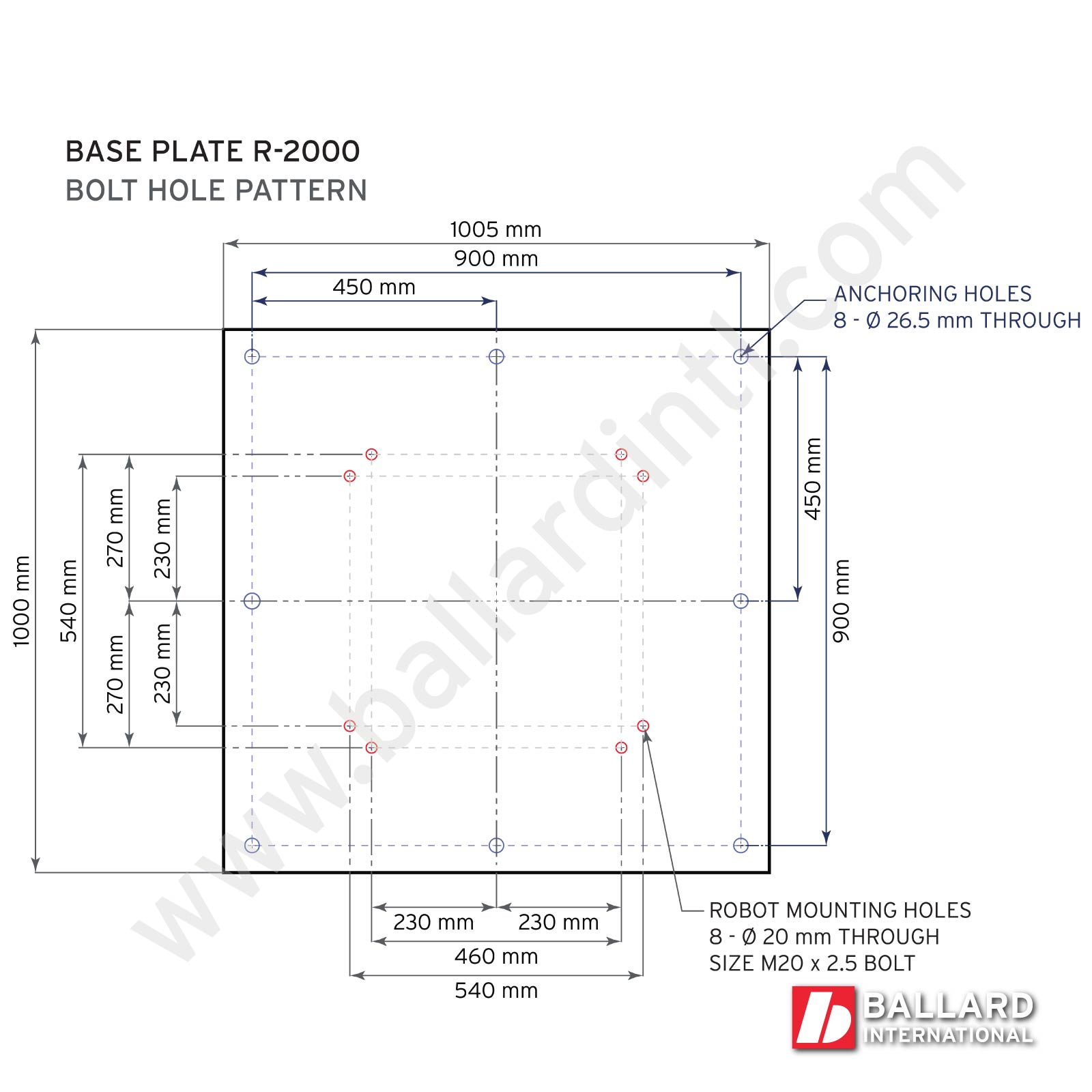

- Pre-tapped with precise FANUC mounting bolt hole pattern
- Pre-drilled holes for mounting the base to the floor
- Height: 35mm
- Base Plate (WxL): 1000mm x 1000mm
- Bolt Hole Thread Size: M20x2.5
- Shipping Dimensions: 48″x48″ Pallet
- Weight:
Base plate thickness, width, and length may vary slightly per unitÂ
CONDITION: USED
This item is shipped via freight. We only ship to businesses with forklift capabilities. Please contact us with any questions you may have.
View all riser size options and floor mount base plates in a new window.

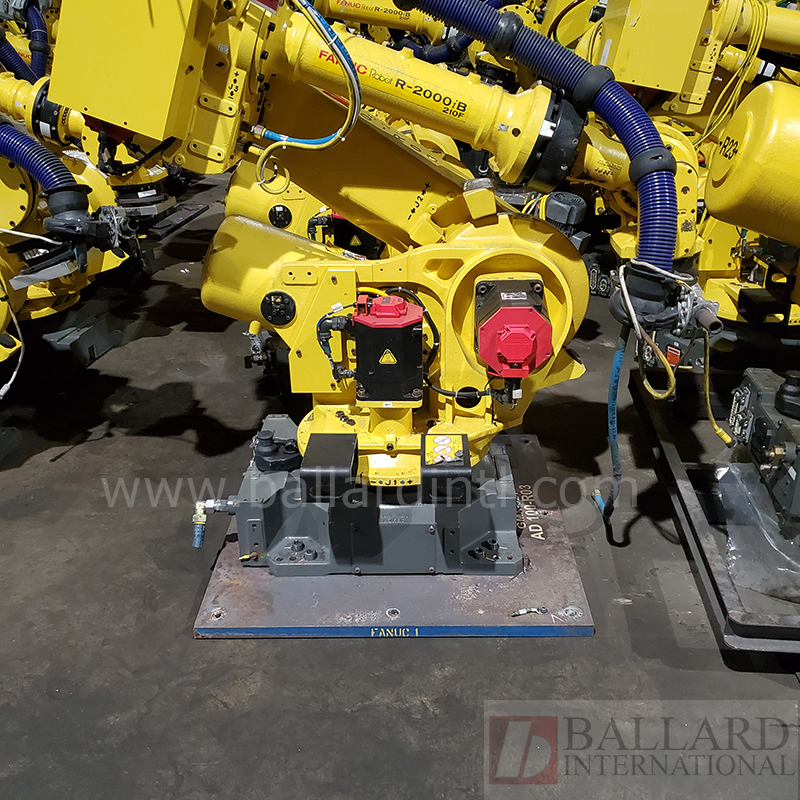

*Please note, the photos on this page are for representation purposes only. Actual robot risers may vary in color, shape, and base/top plate dimensions. All units maintain the specified height and bolt hole patterns.*
