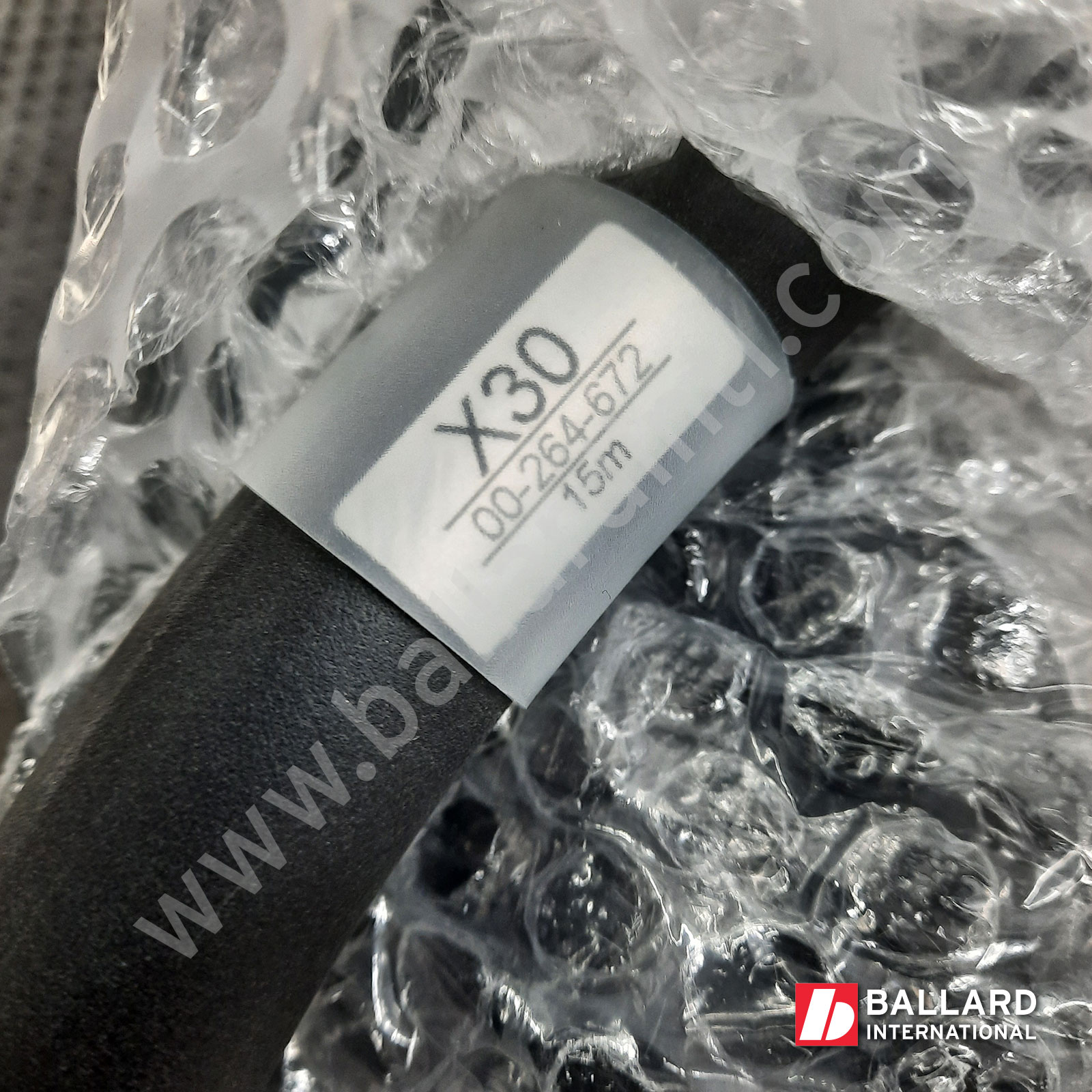

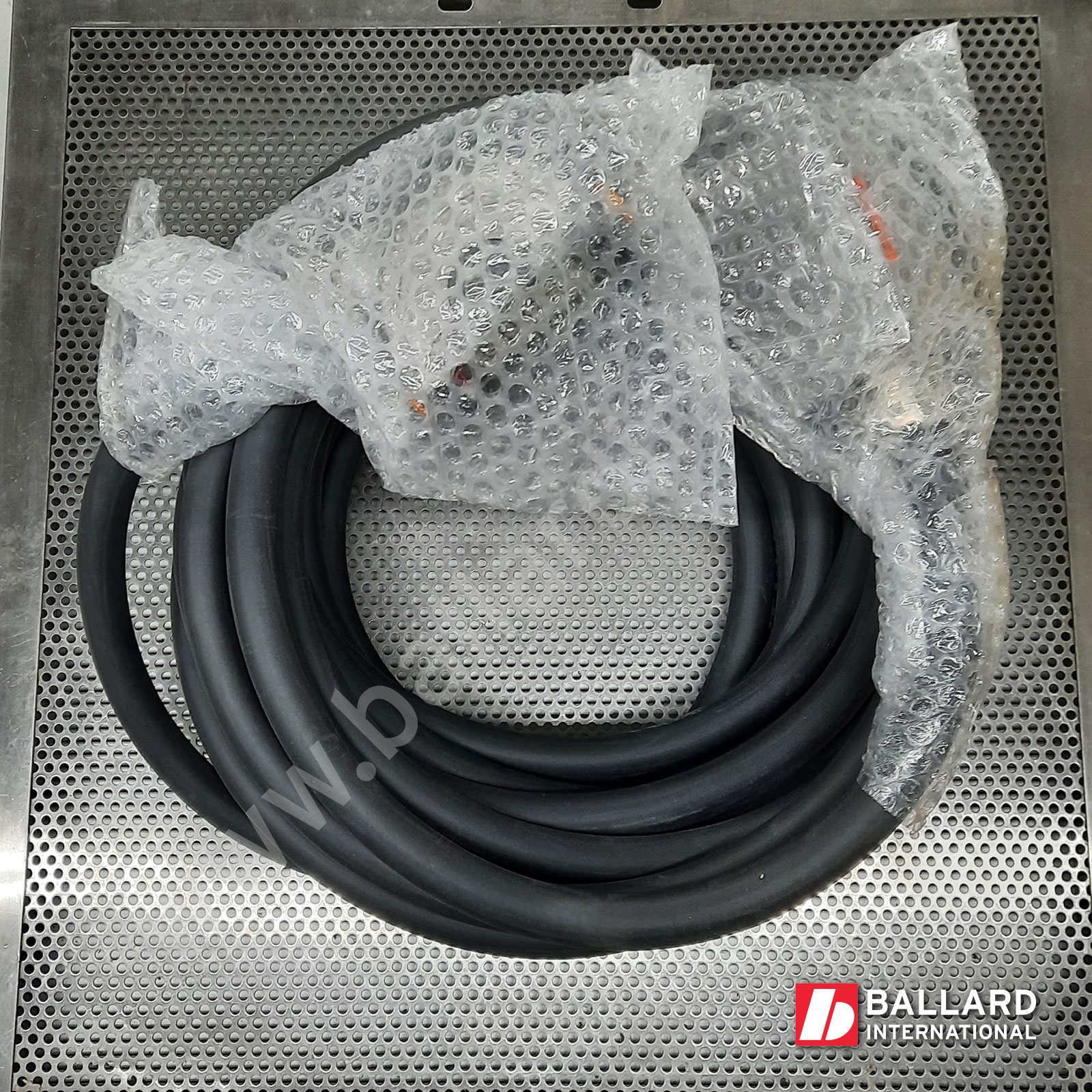

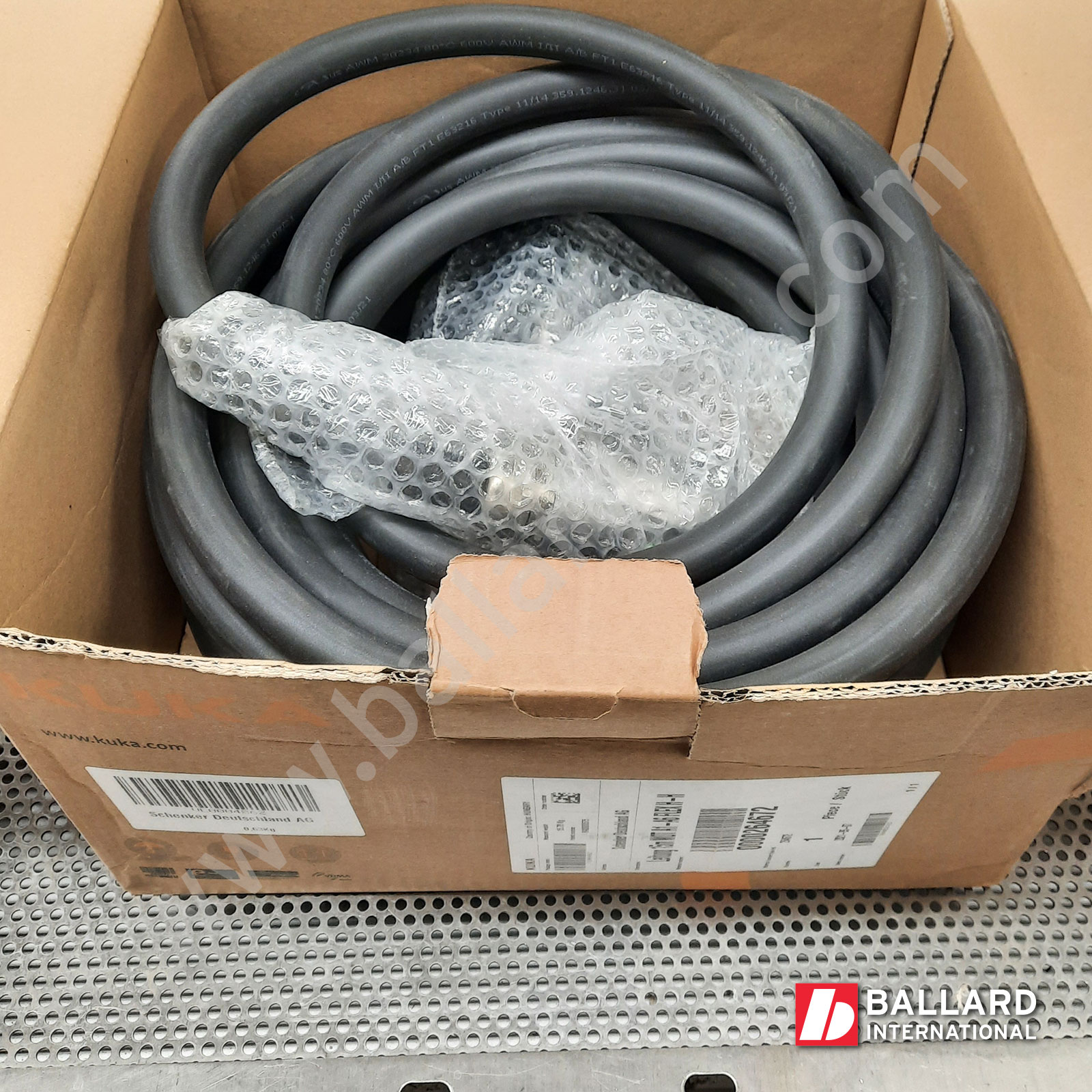

KUKA A1-A6 FLEX X30 Motor Cable 15m

00-264-672

Condition

Clear

Same Day Shipping

For orders placed by 4 PM (EST).
Orders placed after 4 PM (EST) will ship out on the next business day.

100% satisfaction guarantee

Shop with confidence knowing all used parts are tested and guaranteed to be in good working condition.

Product Information

Motor cable for axes A1 – A6, from the robot controller to interface A1 of a robot
SPECIFICATIONS:

Component	Motor cable extension
Installation type	Suitable for cable carrier
Maximum outer diameter	23.5 mm
Minimum bending radius	3x outer diameter, static; 10x outer diameter, dynamic
Length	15 m
Sheath material	PUR
UL approval	true
Oil-resistant	true
Halogen-free	true
Flammability	Flame-retardant
Ambient temperature during operation	-40 ?C to 90 ?C (233 K to 363 K)
Rated voltage	450 V/750 V Uo/U acc. to VDE; 600 V acc. to UL/CSA
