KUKA MOT Single Motor Power Cable 7m

00-196-981

Condition

Clear

Same Day Shipping

For orders placed by 4 PM (EST).
Orders placed after 4 PM (EST) will ship out on the next business day.

100% satisfaction guarantee

Shop with confidence knowing all used parts are tested and guaranteed to be in good working condition.

Product Information

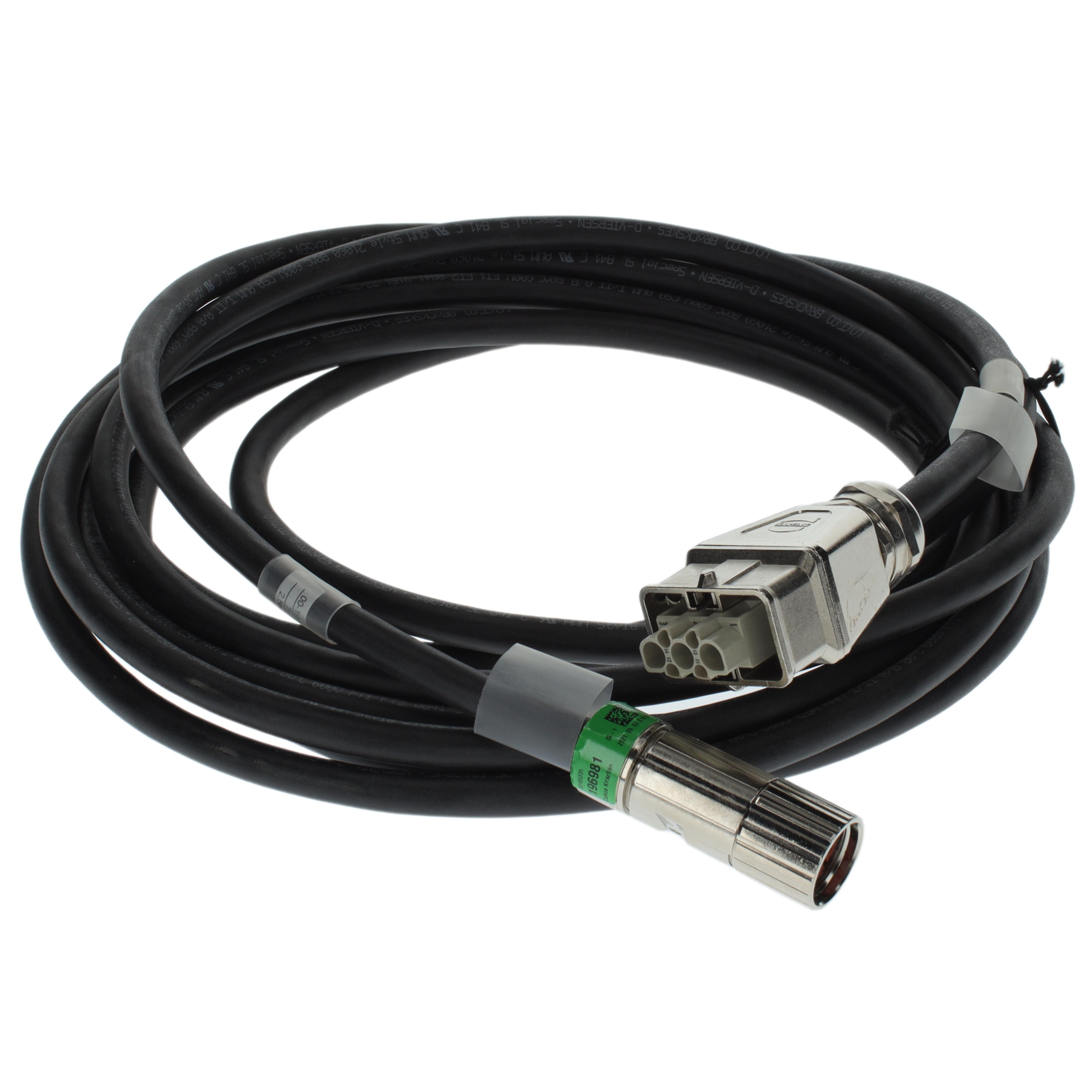

The cable is a single-motor cable (MOT) 2.5?mm? from the controller to the motor.
SPECIFICATIONS:

Component	Motor cable
Installation type	Suitable for cable carrier
Maximum outer diameter	12 mm
Minimum bending radius	3x outer diameter, static; 7x outer diameter, dynamic
Length	7 m
Sheath material	PUR
UL approval	true
Oil-resistant	true
Halogen-free	true
Flammability	Flame-retardant
Ambient temperature during operation	-40 ?C to 90 ?C (233 K to 363 K)
Rated voltage	450 V/750 V Uo/U acc. to VDE; 600 V acc. to UL/CSA
