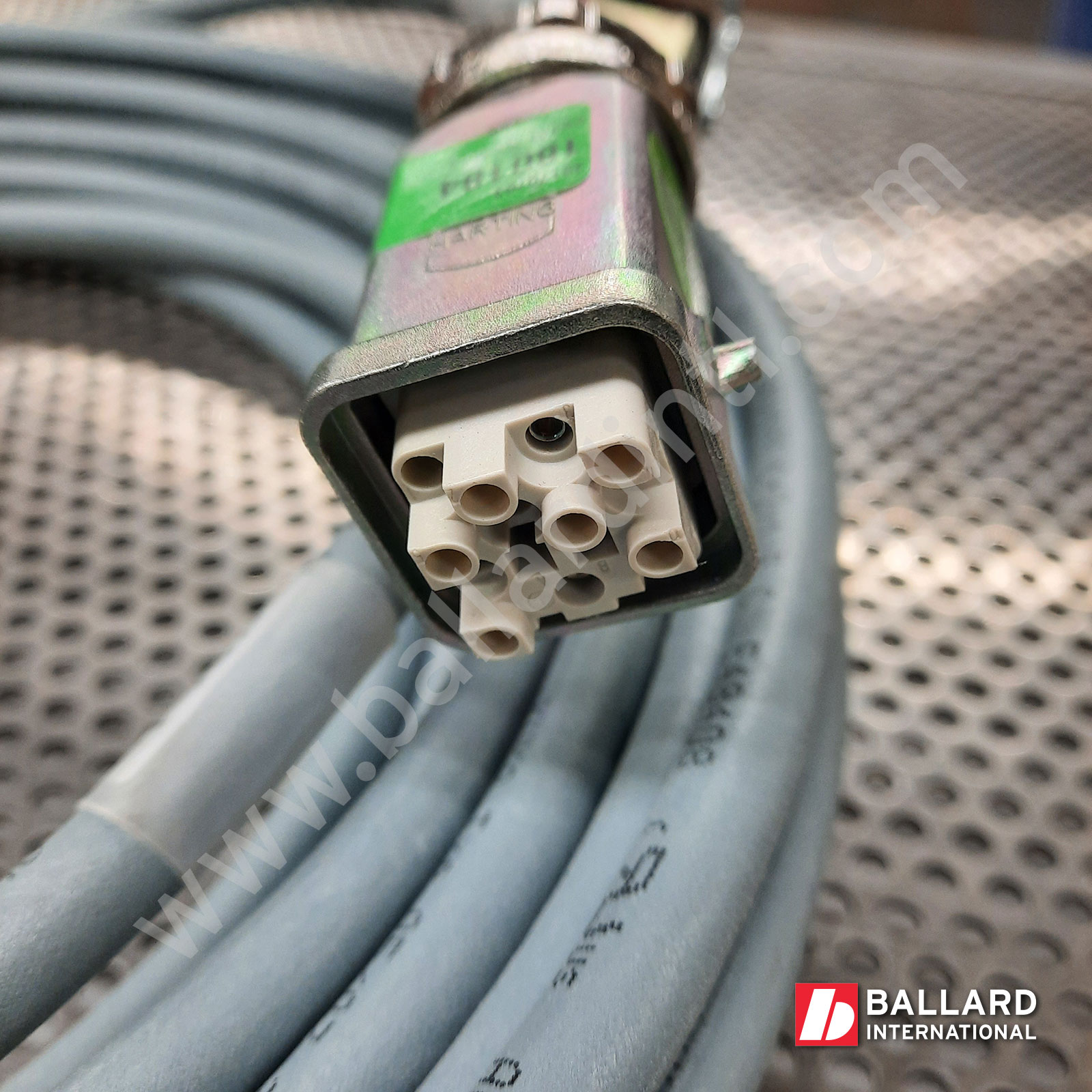

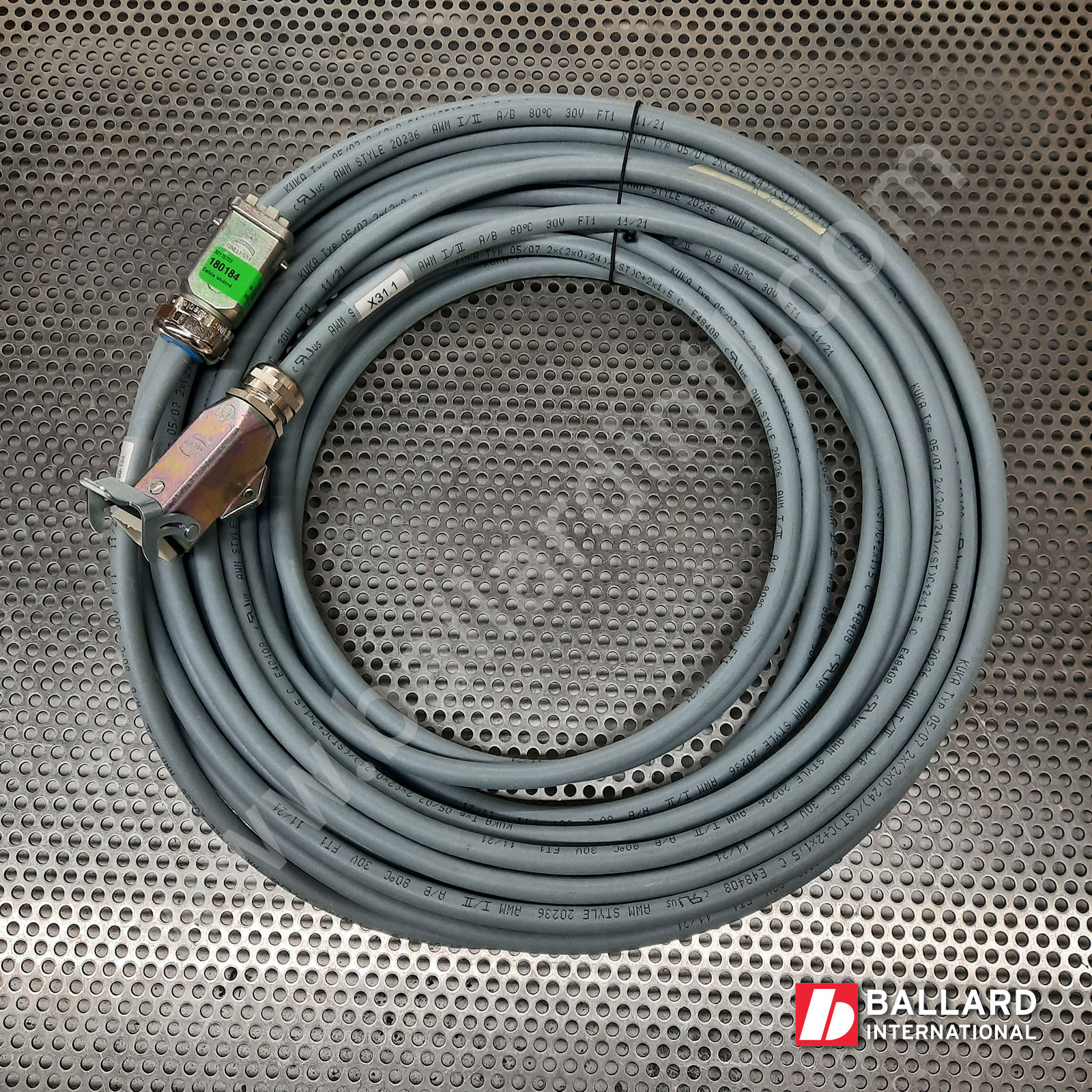

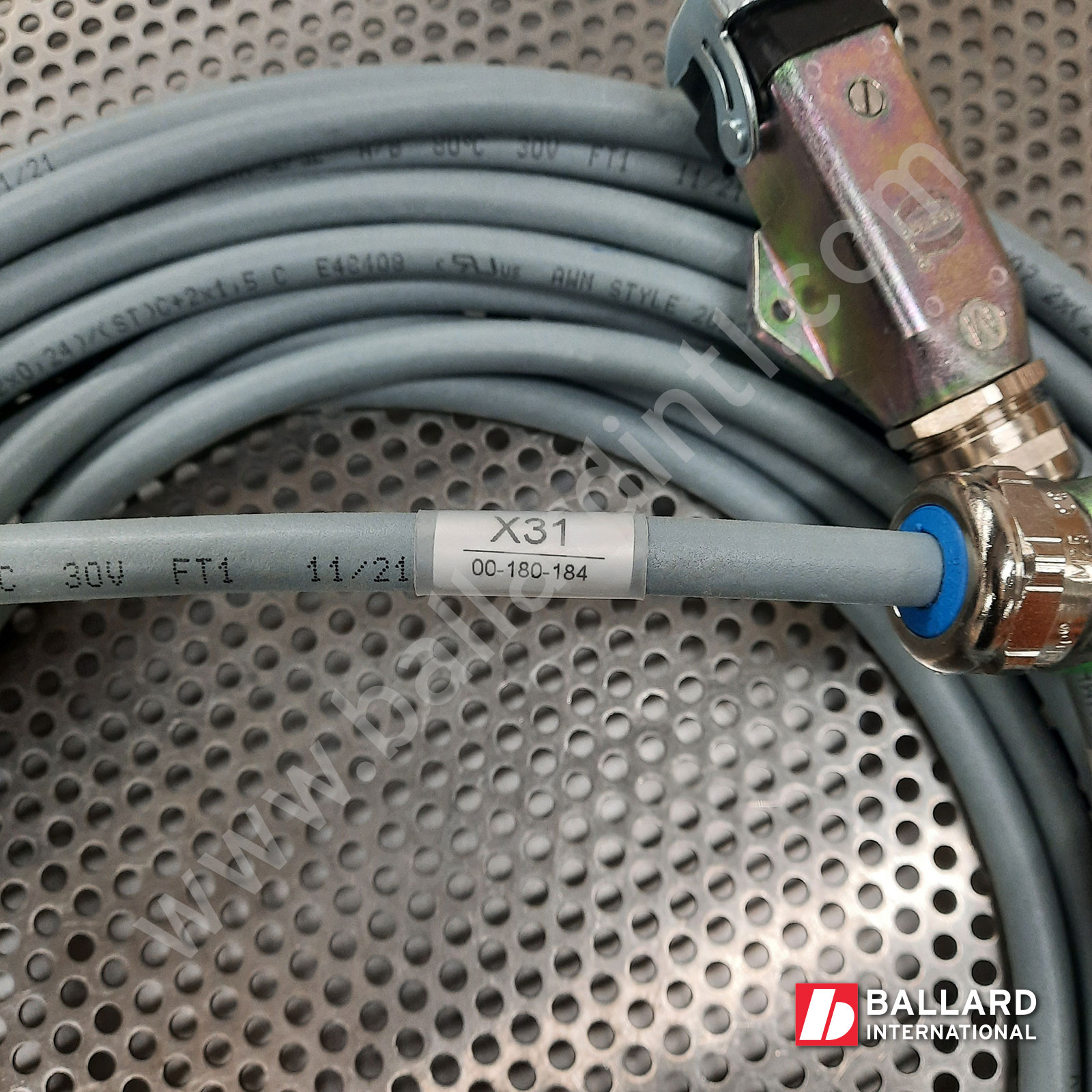

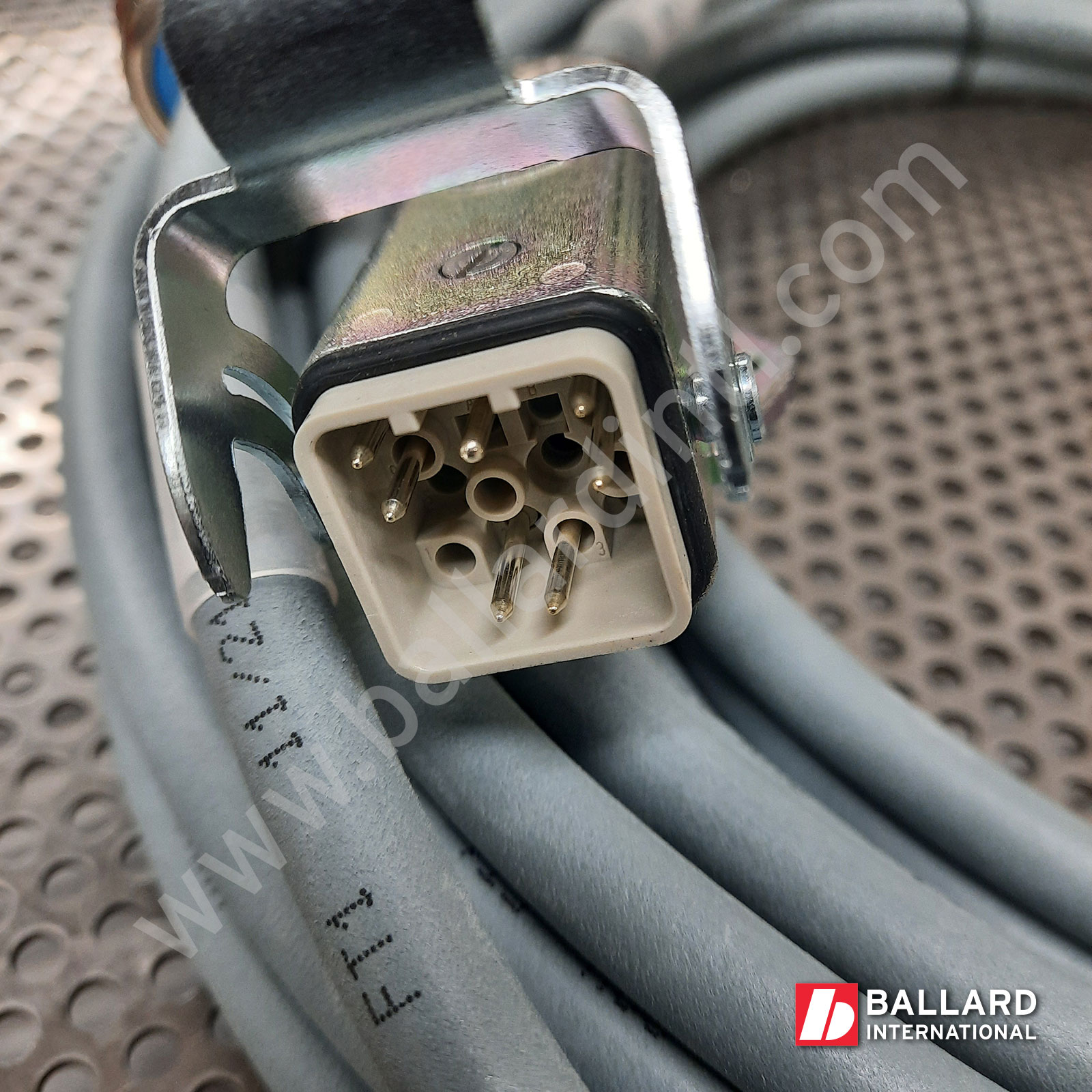

KUKA X31.1 Data Flex Cable 15m

00-180-184

Condition

Clear

Same Day Shipping

For orders placed by 4 PM (EST).
Orders placed after 4 PM (EST) will ship out on the next business day.

100% satisfaction guarantee

Shop with confidence knowing all used parts are tested and guaranteed to be in good working condition.

Product Information

SPECIFICATIONS: For use with KUKA KRC4 Controllers

Component	Data cable extension
Installation type	Suitable for cable carrier
Maximum outer diameter	10.6 mm
Minimum bending radius	3x outer diameter, static; 10x outer diameter, dynamic
Length	15 m
Sheath material	PUR
UL approval	true
Oil-resistant	true
Halogen-free	true
Flammability	Flame-retardant
Ambient temperature during operation	-30 C to 70 C (243 K to 343 K)
Rated voltage	30 V/30 V Uo/U acc. to VDE; 30 V acc. to UL/CSA
