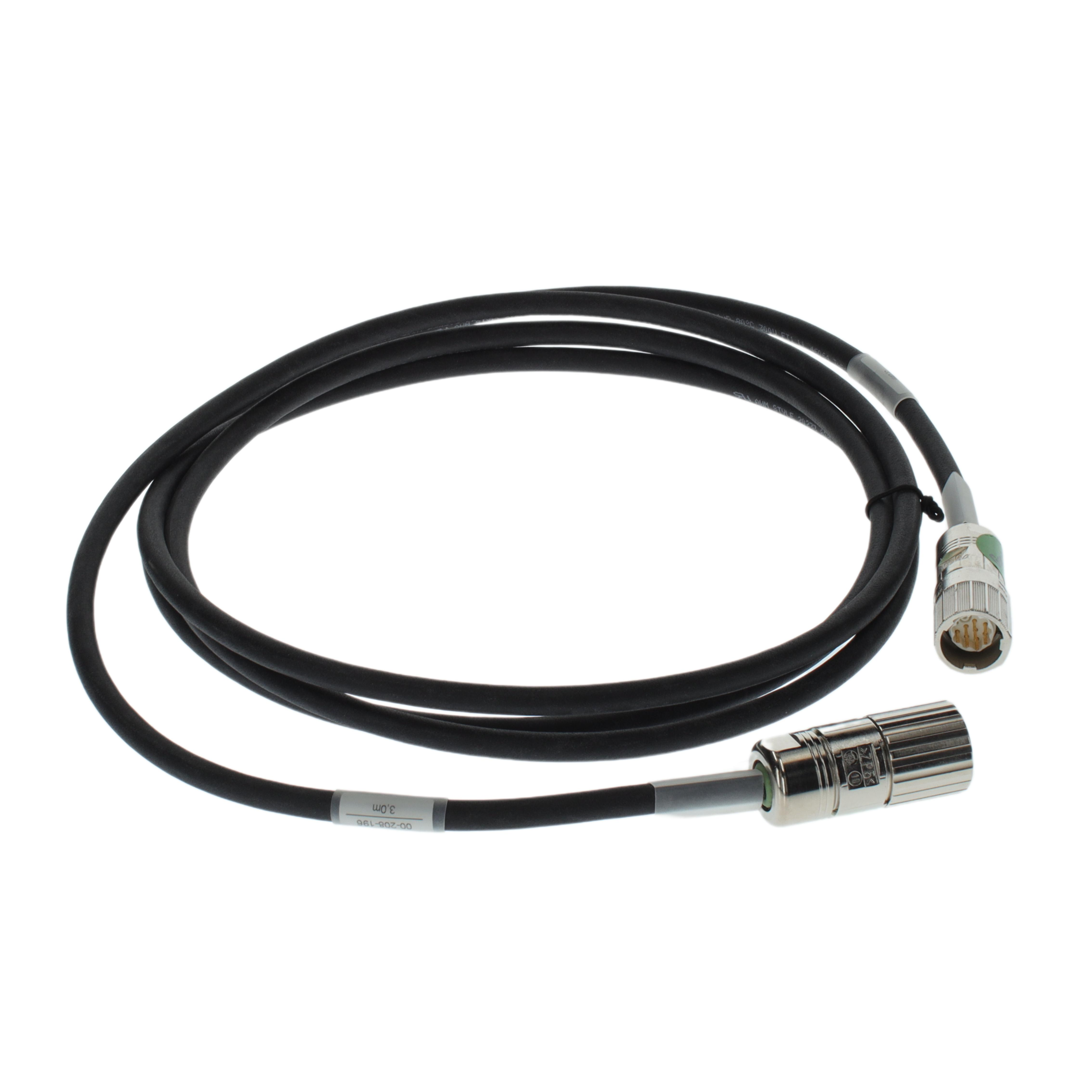

The cable is an XP control cable for one external axis of a KUKA linear unit. As a rule, control cable XP runs from the servomotor of the linear unit to the RDC box of the robot.
SPECIFICATIONS:
- Length: 3 Meter
|
Component |
Resolver cable extension |
|---|---|
|
Installation type |
Suitable for cable carrier |
|
Maximum outer diameter |
8.2 mm |
|
Minimum bending radius |
7x outer diameter, dynamic |
|
Length |
3 m |
|
Sheath material |
PUR |
|
UL approval |
true |
|
Oil-resistant |
true |
|
Halogen-free |
true |
|
Flammability |
Flame-retardant |
|
Ambient temperature during operation |
-30 ?C to 90 ?C (243 K to 363 K) |
|
Rated voltage |
350 V; 300 V acc. to UL/CSA |
