Simplify oil replacement for J4, J5 & J6 axis on Fanuc M-10, M20 and ACR Mate robots with the Ballard International’s purpose- built oil dispensing kit.
Ballard’s Oil Replacement Dispensing Kit was developed to provide all the parts needed to make FANUC robot axis gearbox oil replacement easier, cleaner and more practical then using the traditional FANUC oil injection gun (A05B-1221-K005).
FANUC’s maintenance procedure commonly references the A05B-1221-K005 oil injection gun and A05B-1224-K006 oil injection nipple with value for filling robot gearboxes. The Ballard dispensing system provides an improved method of delivering the specified oil through the applicable robot service port while allowing the technician to continue following FANUC’s specified lubricant, robot posture, fill, venting and pressure-release procedures.
Why Ballard developed this kit:
Anyone who has performed a FANUC robot oil change knows that identifying the correct oil, adapters, service ports and injection equipment can turn routine maintenance job into a complicated process.
Ballard International services and maintains industrial robots in-house. Based on that experience, we developed a optimized dispensing unit and kit that makes the oil-filling portion of the service easier to perform.
Benefits include:
- Cost savings
- Time savings
- Easier oil delivery method
- Includes all the necessary adapters needed for each robot port.
- More convenient connection to robot-specific adapters.
- Cleaner and more controlled oil filling
- Eliminates the need to use the inferior A05B-1221-K005 oil injection gun
Designed to simply the FANUC oil replacement procedure – not replace it
The Ballard Oil Replacement Dispensing Kit is designed to make it easier to replace the oil in a Fanuc robot by provide the necessary fittings/adapters and dispensing unit that changes how the oil is delivered to the gearbox.
It does not change FANUC’s specifications for:
- Oil type
- Required oil quantity
- Service interval
- Robot service posture
- Inlet and outlet location
- Maximum allowable pressure
- Final oil-level requirement
- Post-fill pressure-release procedure
What’s included in the kit?

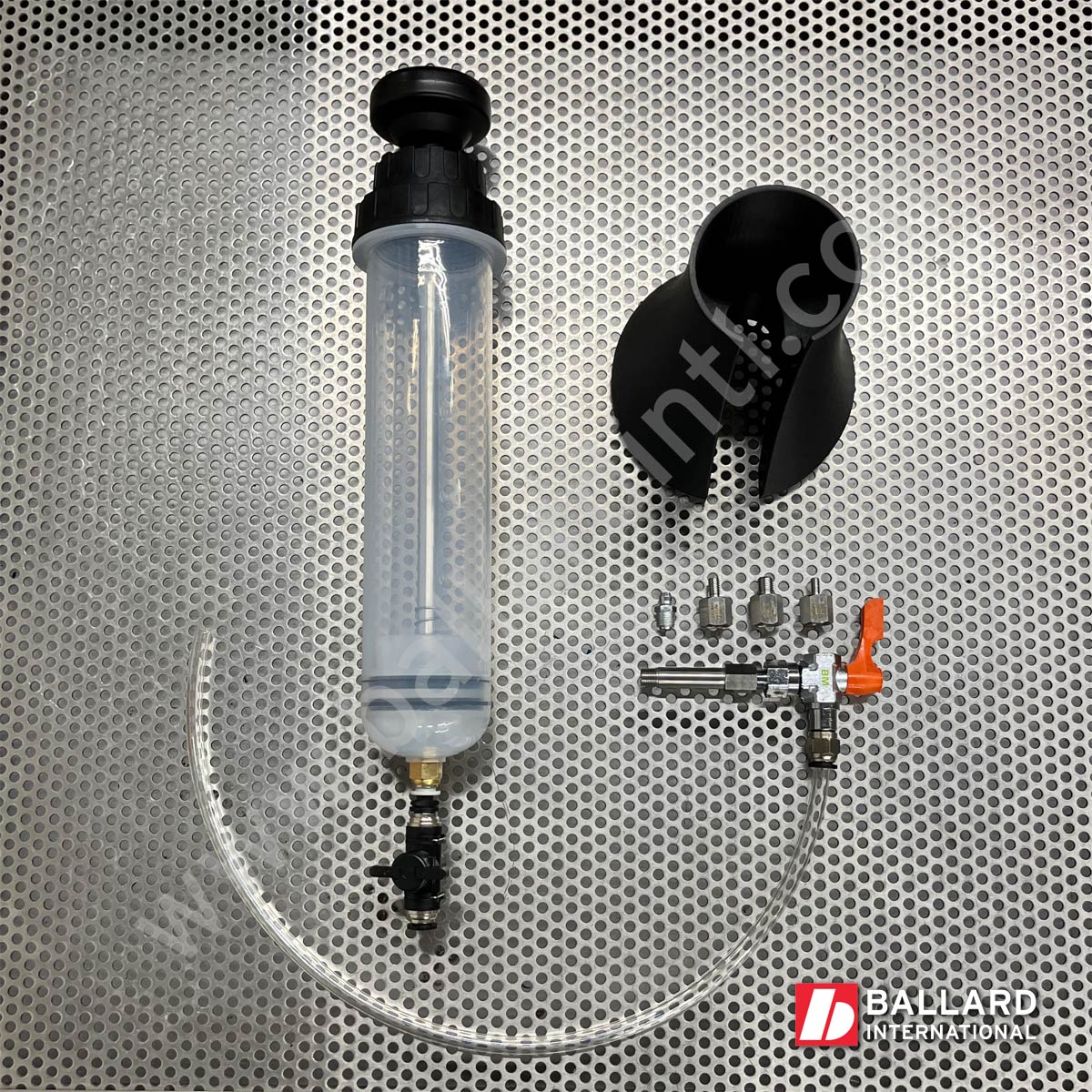

- Oil Dispensing Unit with shut-off valve

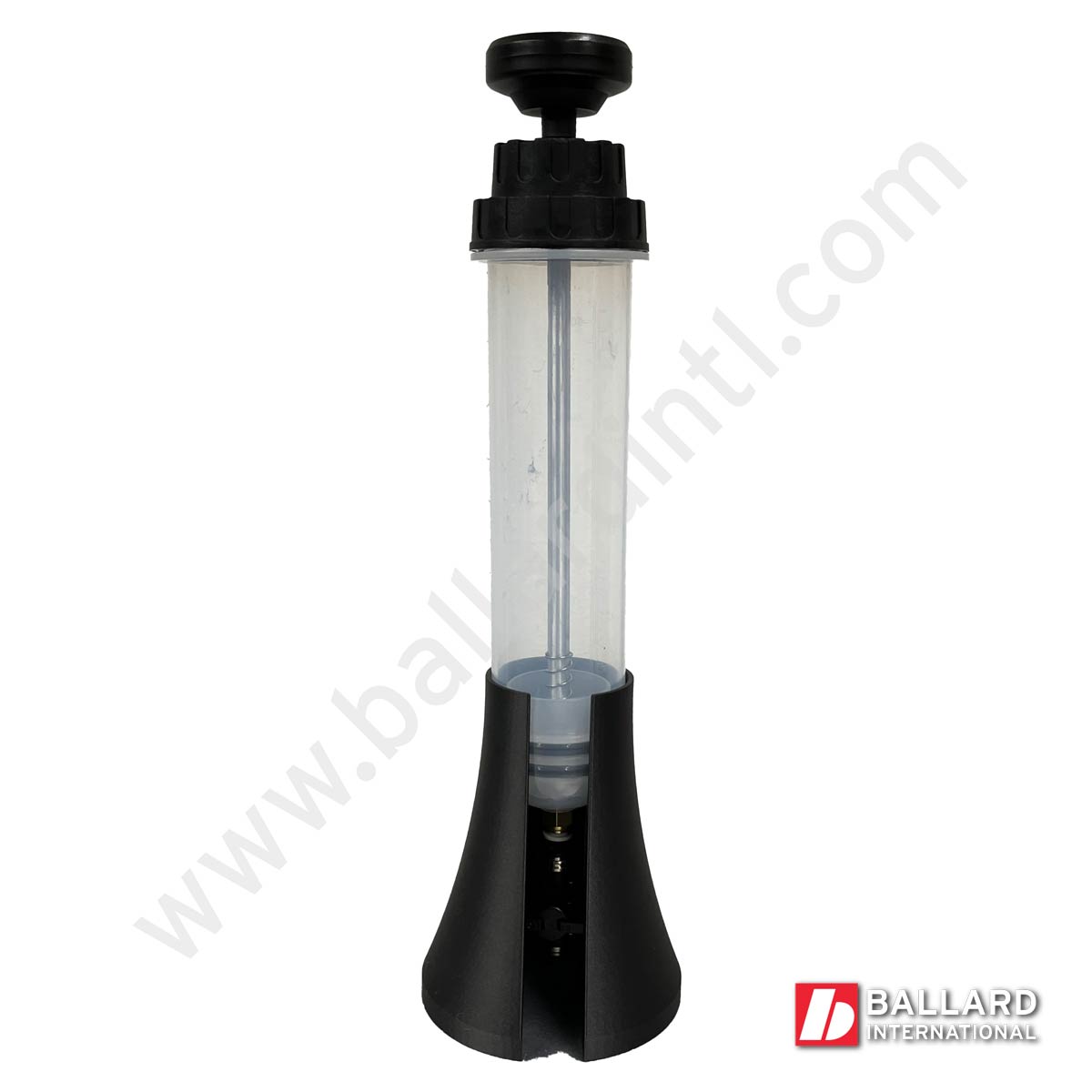

- Stand that holds the Oil Dispensing Unit upright for easier, cleaner filling
- Oil hose
- Fanuc valve fitting (A05B-1224-K006)

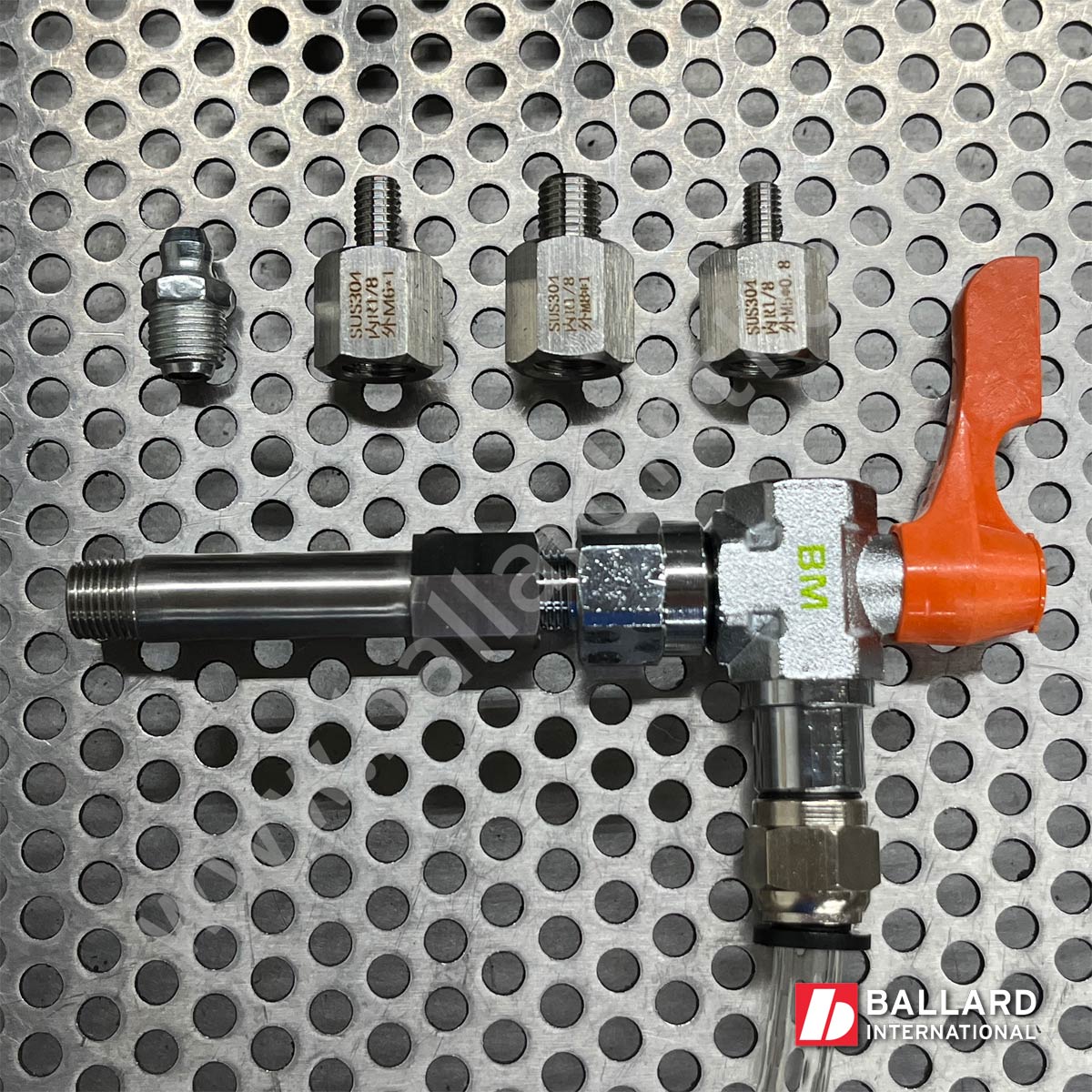

- All necessary adapters for Fanuc robot axis service ports.
For use to replace the oil in the following Fanuc Robot Model Series:
- M-10iA
- M-10iD
- M-20iA
- M-20iD
- Arc Mate 100iC
- Arc Mate 100iD
- Arc Mate 120iC
- Arc Mate 120iD
Recommended Oil:
For a cleaner and easier filling process, pair this kit with:
LUBEO000000008O-B Bonnoc AX68 Oil (A98L-0040-0233) in Squeeze-Bottle Packaging
The squeeze bottle is designed to make transferring oil into the injection gun easier while reducing spills and helping the operator use more of the oil in the container.
This is an aftermarket maintenance kit developed by Ballard International and is not manufactured by FANUC
