SPECIFICATIONS:

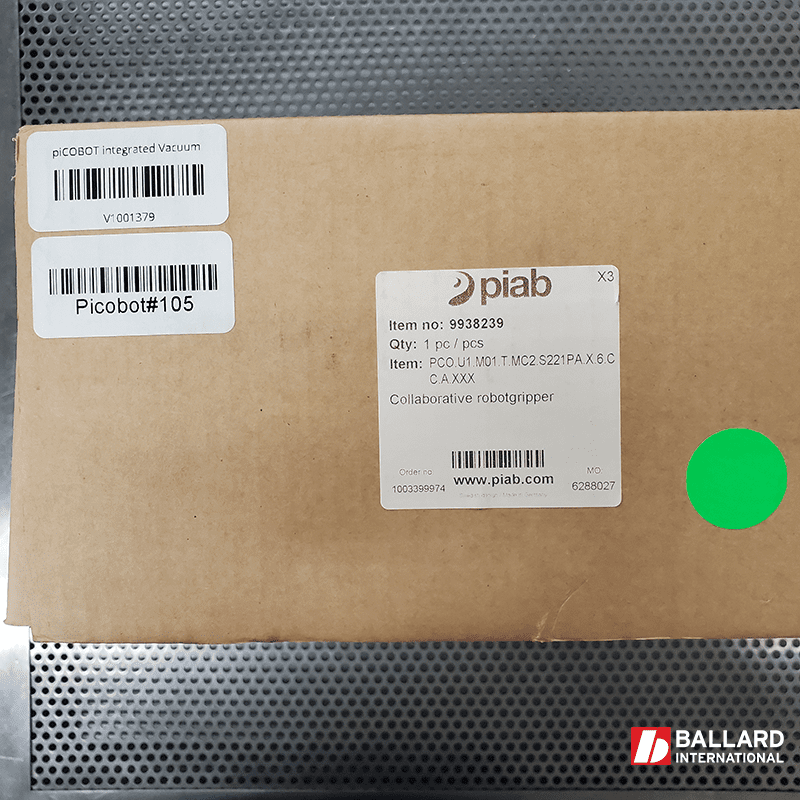

- Part # PC0.U1.M01.T.MC2.S221P.X.6.CC.A.XXX
- Payload up to 7kg
- UR Plug & Play software (URCap) capabilities.
- Compatible UR Robots: UR3, UR3e, UR5, UR5e, UR10, UR10e & UR16e
PCO: piCobot
Robot Manufacturer (U1): Universal Robot
Mechanical Interface (M01): ISO 9409-1-50-4-M6
Vacuum Characteristics (T) : Extra High Vacuum
Nozzle Model (MC): (14-19 NI/min
Nozzle Rows (1): 1
Communication Interface (S): Standard input/output
Energy Savings Type (S): Energy Automatic level determination
Blow-off Type (2): Intelligent Blow-off
Additional Functions (1): Self adhesion control
Vacuum Sensing Unit (P): kPA
Vacuum Filter (X): Non
Air Connection (6): 6 push angle connector
Valve Configuration (CC): NC Vacuum + NC Blow-off
Cable(A):
Gripper (X): Non
Suction Cup (X): non
CONDITION: USED
