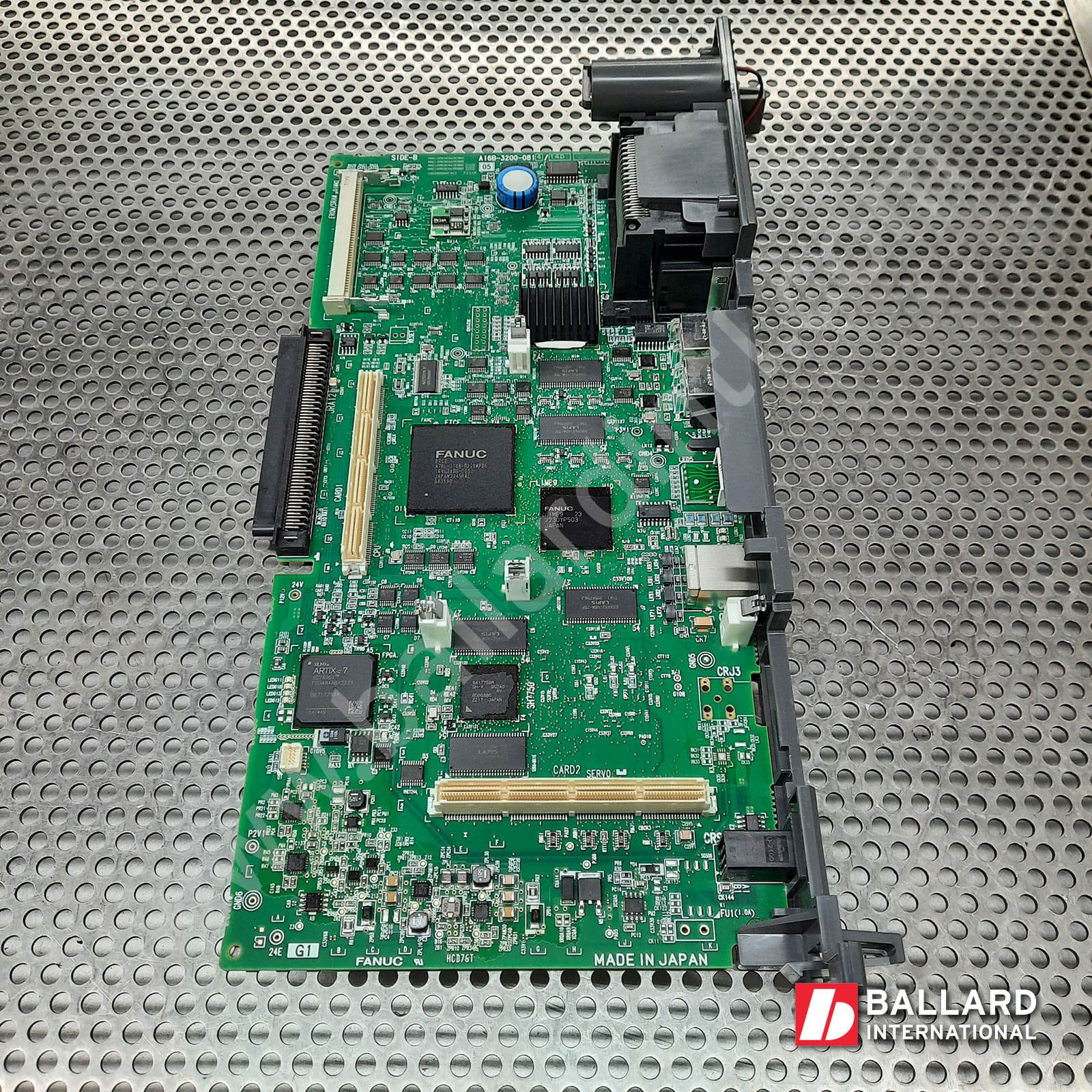

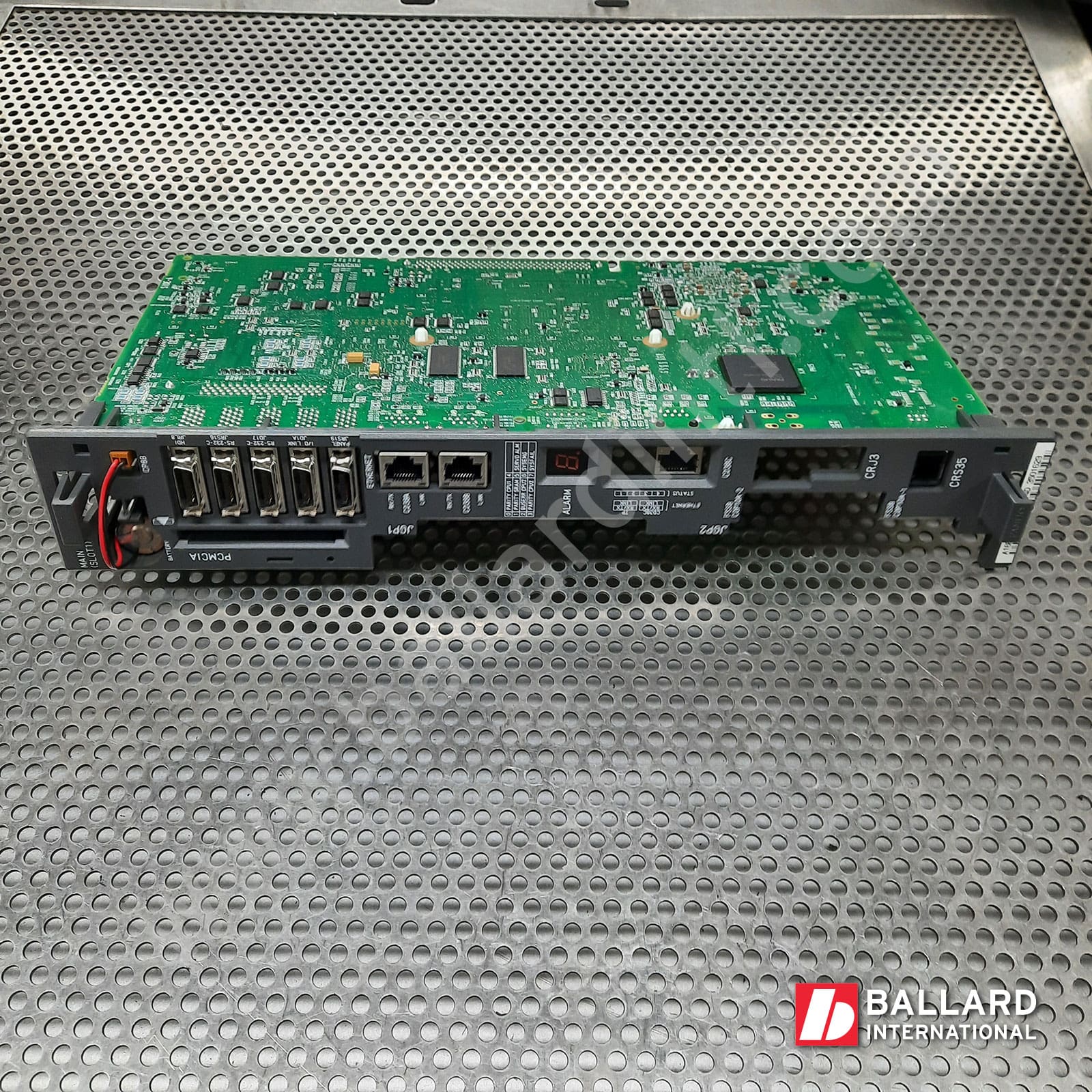

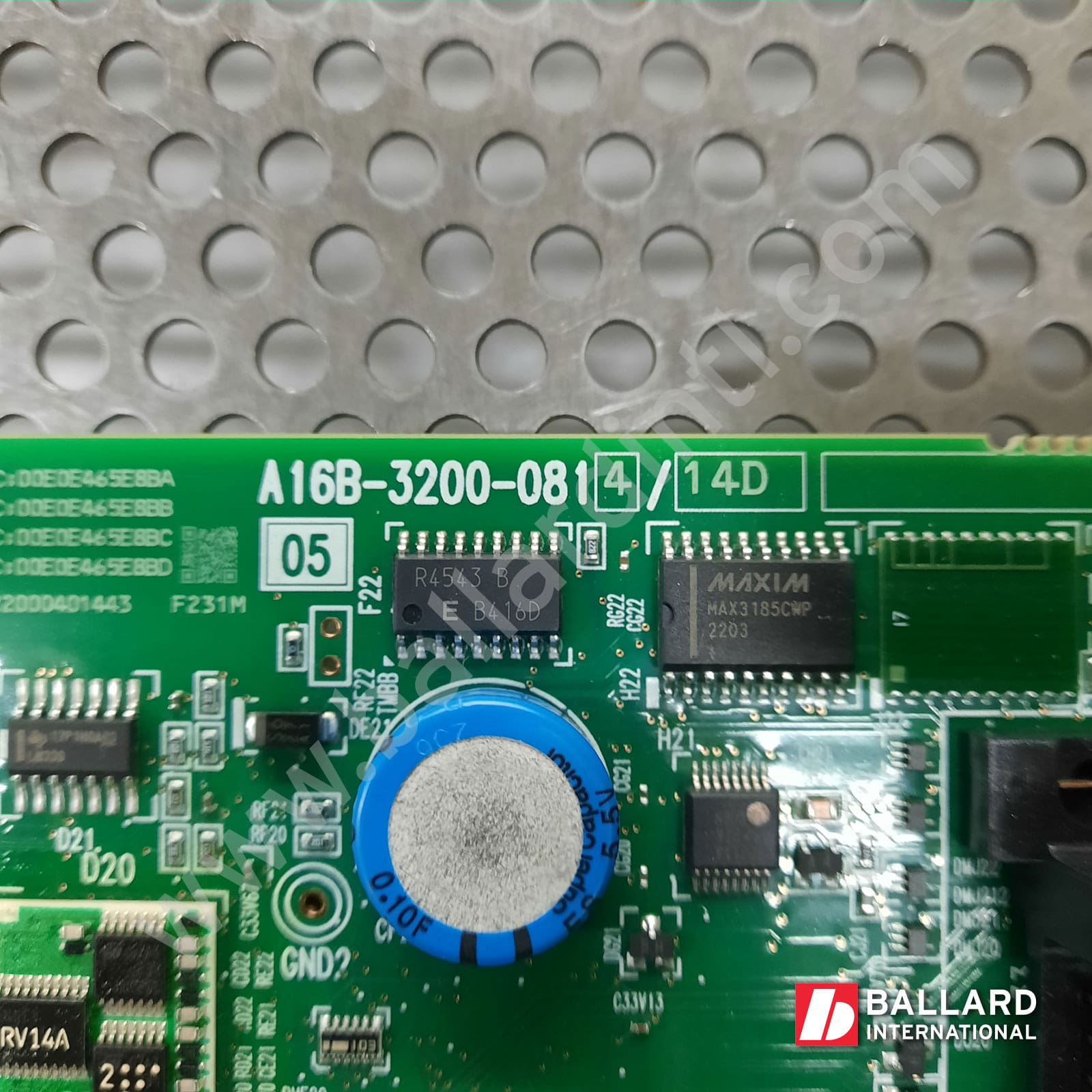

Note: This listing is for the A16b-3200-0814 main board only, the daughterboards are not included. Most axis control cards, CPU cards and FROM/SRAM modules are available for purchase separately, see Related Parts. If you do not see the option you are looking for, contact us for more info!
SPECIFICATIONS FOR A16b-3200-0814:
- Main Board/PCB for FANUC R-30iB Plus Controllers.
- RS232C 1ch, For I/O Link i slave, Without Vision I/F
- See Related Parts – Main Boards for other options
- The main board is an important component that stores the robot’s programs and configurations. It also controls servo mechanism positioning.
- Contains: microprocessor, peripheral circuits, memory, and operator’s panel control circuit.
- There are various cards and module options that may be installed horizontally to the main board.
- See Related Parts (below) for card options
- Or view the Main PCB Card & Modules Reference Guide
- FANUC ordering specification #: A05B-2670-H004
Related Parts:
Main Boards:
- A16B-3200-0810: Standard Option, RS232C 1ch, For I/O Link i slave
- A16B-3200-0811: Force Sensor, 1 Channel, I/O Link Option
- A16B-3200-0812: Force Sensor, High Speed, 1 Channel, I/O Link Option
- A16B-3200-0814: Standard, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0815: Force Sensor, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0816: Force Sensor, High Speed, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0817: Force Sensor, High Speed, 2 Channel, I/O Link Option
- A16B-3200-0818: Force Sensor, High Speed, 2 Channel, Without Vision I/F, I/O Link Option
CPU Card Options:
- A17B-3301-0250: SDRAM 1GB
- A17B-3301-0252: SDRAM 1GB, For I/O Link i slave
Axis Control Card Options:
- A20B-3300-0819: 6-Axis
- A20B-3300-0818: 12-Axis
- A20B-3300-0817: 18-Axis
- A20B-3300-0816: 24-Axis
- A20B-3300-0815: 36-Axis
FROM/SRAM Module Options:
- A20B-3900-0293: FROM 256MB / SRAM 1MB
- A20B-3900-0295: FROM 256MB / SRAM 2MB
- A20B-3900-0296: FROM 256MB / SRAM 3MB
